Leading an industrial maintenance team requires a unique combination of communication skills, industry knowledge and technical expertise. Implementing standard work and a preventive maintenance program is more than just good for business – it also aligns your team with a common goal of safely and efficiently keeping the plant up and running. Choosing the right tools can make a significant difference in the success of these types of programs.

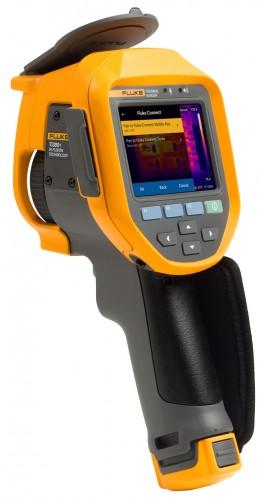

The Fluke Ti300+ helps teams find issues before they are fully formed problems. It has the resolution and accuracy needed to clearly reveal temperature differentials or demonstrate progressive heat changes over time. With LaserSharp™ AutoFocus the Ti300+ ensures focused images – every single time. With the touch of a button, use the built-in laser distance meter to calculate and display the distance to your designated target on the camera screen and snap the image in focus. Most importantly, temperature readings from in focus images will be highly accurate. Enable your team to get clear images while maintaining a safer distance from operating equipment.
For thermal images to illustrate an issue, you need to know your equipment and understand the subtle difference between normal and abnormal operating temperatures. You also need confidence in your ability to capture accurate thermal images and having a Fluke Ti300+ thermal camera with LaserSharp AutoFocus makes taking everything much easier. Finally, you need a thermal camera that is rugged enough to capture quality infrared images even if it gets dropped (up to two meters).
Key features
- 320 x 240 resolution
- 2 meter drop test
- LaserSharp™ Auto Focus
- Manual or automatic focus
- Measure up to 650 °C
- Subject to Export Control
Specifications: Fluke Ti300+ Thermal Camera
Key features |
IFOV with standard lens (spatial resolution) |
1.85 mRad, D:S 532:1 |
Detector resolution |
320 x 240 |
SuperResolution |
No |
Infrared Resolution |
76,800 pixels |
MultiSharp™ Focus |
No |
LaserSharp® Auto Focus |
Yes, for consistently in-focus images |
Laser distance meter |
Yes, calculates distance to the target for precisely focused images and displays distance on screen |
Advanced manual focus |
Yes |
Ruggedized touchscreen display |
3.5 inch (landscape) 640 x 480 LCD |
Rugged, ergonomic design for one-handed use |
Yes |
Digital zoom |
No |
Temperature measurement |
Temperature measurement range (not calibrated below -10 °C) |
-20 °C to 650 °C (-4 °F to 1202 °F) |
Accuracy |
±2 °C or 2% (at 25 °C nominal, whichever is greater) |
Thermal sensitivity (NETD)* |
≤ 0.075 °C at 30 °C target temp (75 mK) |
On-screen emissivity correction |
Yes (both value and table) |
On-screen reflected background temperature compensation |
Yes |
On-screen transmission correction |
Yes |
*Best possible |
Wireless connectivity |
To PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available) |
Fluke Connect® app compatible |
Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing |
Fluke Connect® Assets optional software |
Through the desktop, assign images to assets, easily compare measurement types in one location and create reports |
Fluke Connect® Instant Upload |
Yes*, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC |
Fluke Connect® tool compatible |
Yes*, connects wirelessly to select Fluke Connect enabled tools and displays measurements on camera screen |
IR-Fusion® technology |
Adds the context of the visible details to your infrared image |
AutoBlend™ mode |
Min, Mid, Max IR plus full visible on camera; continously variable in software |
Picture-In-Picture (PIP) |
Yes |
Built-in digital camera (visible light) |
5 MP |
Lenses |
Standard lens |
IFOV (spatial resolution) |
1.85 mRad, D:S 532:1 |
Field of view |
34 °H x 24 °V |
Minimum focus distance |
15 cm (approx. 6 in) |
IR-Fusion® technology |
Picture-In-Picture and full screen |
Optional 2x telephoto smart lens |
IFOV (spatial resolution) |
0.93mRad, D:S 1529:1 |
Field of view |
17 °H x 12 °V |
Minimum focus distance |
45 cm (approx. 18 in) |
IR-Fusion® technology |
Picture-In-Picture and full screen |
Optional 4x telephoto smart lens |
IFOV (spatial resolution) |
0.46 mRad, D:S 2941:1 |
Field of view |
6 °H x 4.5 °V |
Minimum focus distance |
1.5 m (approx. 60 in) |
IR-Fusion® technology |
N/A |
Optional wide-angle smart lens |
IFOV |
2.62 mRad, D:S 377:1 |
Field of view |
48 °H x 34 °V |
Minimum focus distance |
15 cm (approx. 6 in) |
IR-Fusion® technology |
Full screen |
Level and span |
Smooth auto and manual scaling |
Fast auto toggle between manual and auto modes |
Yes |
Fast auto-rescale in manual mode |
Yes |
Minimum span (in manual mode) |
2.0 °C (3.6 °F) |
Minimum span (in auto mode) |
3.0 °C (5.4 °F) |
Data storage and image capture |
Extensive memory options |
Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload to Fluke Cloud™ for permanent storage |
Image capture, review, save mechanism |
One-handed image capture,review, and save capability |
Image file formats |
Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files |
Memory review |
Thumbnail and fullscreen review |
Software |
Full analysis and reporting software with access to the Fluke Connect system |
Export file formats with SmartView® software |
Bitmap (.bmp), GIF, JPEG, PNG, TIFF |
Voice annotation |
60 seconds maximum recording time per image; reviewable playback on camera, optional bluetooth headset available but not required |
IR-PhotoNotes™ |
Yes (2 images) |
Text annotation |
Yes |
Video recording |
No |
File formats video |
No |
Streaming video (remote display) |
No remote display through Fluke Connect |
Remote control operation |
Remote display only through Fluke Connect with HDMI connection. No remote control. |
Auto capture (temperature and interval) |
No |
Battery |
Batteries (field-replaceable, rechargeable) |
Two lithium ion smart battery packs with five-segment LED display to show charge level |
Battery life |
2-3 hours per battery (*Actual life varies depending on settings and usage) |
Battery charge time |
2.5 hours to full charge |
Battery charging system |
Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter |
AC operation |
AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) |
Power saving |
User selectable sleep and power off modes |
Color palettes |
Standard palettes |
9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
Ultra Contrast™ palettes |
9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
General specifications |
Frame rate |
60 Hz or 9 Hz versions |
Laser pointer |
Yes |
LED light (torch) |
Yes |
Color alarms (temperature alarms) |
High temperature, low temperature, and isotherms (within range) |
Center-point temperature measurement |
Yes |
Spot temperature |
Hot and cold spot markers |
User-definable spot markers |
No |
Center box |
No |
Infrared spectral band |
7.5 μm to 14 μm (long wave) |
Operating temperature |
-10 °C to +50 °C (14 °F to 122 °F) |
Storage temperature |
-20 °C to +50 °C (-4 °F to 122 °F) |
Relative humidity |
10% to 95% non-condensing |
Safety |
IEC 61010-1: Overvoltage category II, Pollution Degree 2 |
Electromagnetic compatibility |
IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A |
Australian RCM |
IEC 61326-1 |
US FCC |
CFR 47, Part 15 Subpart B |
Vibration |
0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6 |
Shock |
25 g, IEC 68-2-29 |
Drop |
Engineered to withstand 2 meter (6.5 feet) drop with standard lens |
Size (H x W x L) |
27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5 in) |
Weight (battery included) |
1.04 kg (2.3 lb) |
Enclosure rating |
IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
Warranty |
Two-years (standard), extended warranties are available |
Recommended calibration cycle |
Two-years (assumes normal operation and normal aging) |
Supported languages |
Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
