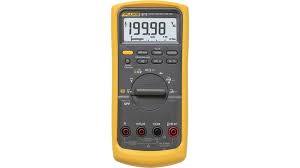

Fluke 87V/EUR True RMS Multimeter

  • ₦0.00
    • SKU: Fluke 87-V/EUR
    • Brand: Fluke
    • Availability: In Stock

    Product overview: Fluke 87V TRMS Industrial Multimeter Fluke 87V TRMS Industrial Multimeter The Fluke 87V TRMS Multimeter provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment even in loud, high energy, and high altitude locations. This digital multimeter takes the guesswork out...



    Add to quote

    Product overview: Fluke 87V TRMS Industrial Multimeter

    Fluke 87V TRMS Industrial Multimeter

    The Fluke 87V TRMS Multimeter provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment even in loud, high energy, and high altitude locations.

    This digital multimeter takes the guesswork out of drive system troubleshooting. This electrical multimeter

    includes a unique function for accurately measuring noisy at the VFD and at the motor terminals. Special shielding blocks high frequency, high-energy noise generated by large drive systems.

    The Fluke 80 Series V of digital multimeters have improved measurement functions, troubleshooting features, resolution and accuracy to solve more problems on motor drives, in plant automation, power distribution, and electro-mechanical equipment.

    Other useful features

    • Rugged, high accuracy industrial electrical multimeter to measure current, voltage and frequency on complex variable frequency drive (VFD) signals
    • Offers true-RMS AC voltage and current for measuring non-linear signals
    • Captures intermittents as short as 250 µS
    • Safety rated CAT III 1000 V, CAT IV 600 V
    • Includes a built-in thermometer and temperature probe

    Applications

    For Application engineer / Plant engineer / Industrial electricians (Working with VSD’s) / Electrical engineer. In plant automation, Power distribution, Electro-mechanical equipment, Industrial electronics, Setting up / repairing, adjustable speed motor drives.

    Includes

    • TL75 Test Leads
    • AC175 Alligator Clips
    • Holster
    • 9V Battery (Installed)
    • 80BK Temperature Probe

    Specifications: Fluke 87V TRMS Industrial Multimeter

    Specifications
    Voltage DC Maximum voltage 1000 V
    Accuracy ±(0.05% + 1)
    Maximum resolution 10 µV
    Voltage AC Maximum voltage 1000 V
    Accuracy ±(0.7% + 2) True RMS
    AC bandwidth 20 kHz with low pass filter; 3 dB @ 1 kHz
    Maximum resolution 0.1 mV
    Current DC Maximum amps 10 A (20 A for 30 seconds maximum)
    Amps accuracy ±(0.2% + 2)
    Maximum resolution 0.01 µA
    Current AC Maximum amps 10 A (20 A for 30 seconds maximum)
    Amps accuracy ±(1.0% + 2) True RMS
    Maximum resolution 0.1 µA
    Resistance Maximum resistance 50 MΩ
    Accuracy ±(0.2% + 1)
    Maximum resolution 0.1 Ω
    Capacitance Maximum capacitance 9,999 µF
    accuracy ±(1% + 2)
    Maximum resolution 0.01 nF
    Frequency Maximum frequency 200 kHz
    Accuracy ±(0.005% + 1)
    Maximum resolution 0.01 Hz
    Duty cycle Maximum duty cycle 99.9%
    Accuracy ±(0.2% per kHz + 0.1%)
    Maximum resolution 0.1%
    Temperature measurement –200.0 °C – 1090 °C
    –328.0 °F – 1994.0 °F
    excluding probe
    80 BK temperature probe –40.0 °C – 260 °C
    –40.0 °F – 500 °F, 2.2 °C or 2% whichever is greater
    Conductance Maximum conductance 60.00 nS
    Accuracy ±(1.0% + 10)
    Maximum resolution 0.01 nS
    Diode Range 3 V
    Resolution 1 mV
    Accuracy ±(2% + 1)
    Duty cycle range Accuracy Within ±(0.2% per kHz + 0.1%)
    Environmental Specifications
    Operating temperature –20 °C to + 55 °C
    Storage temperature –40 °C to + 60 °C
    Humidity (without condensation) 0% – 90% (0 °C – 35 °C)
    0% – 70% (35 °C – 55 °C)
    Operating Altitude 2000 m
    Safety Specifications
    Overvoltage category EN 61010–1 to 1000 V CAT III, 600V CAT IV
    Agency approvals CE, CSA, RCM
    Mechanical and General Specifications
    Size 201 x 98 x 52 mm (with holster)
    Weight 355 g
    624 g – with holster
    Display Digital 6000 counts updates 4/sec.
    19,999 counts in high–resolution mode
    Analog 32 segments, updates 40/sec
    Frequency 19,999 counts, updates 3/sec at > 10 Hz
    Warranty Lifetime
    Battery Life Alkaline ~400 hours typical, without backlight
    Shock 1 Meter drop per IEC 61010–1:2001
    Vibration Per MIL–PRF–28800 for a Class 2 instrument
