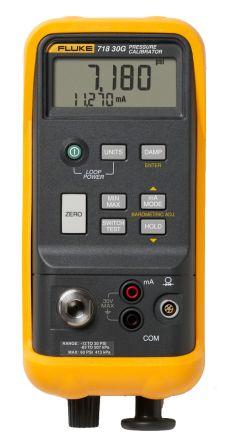

Fluke 718 30G Pressure Calibrator (2 bar)

    • SKU: Fluke-718 30G
    • Brand: Fluke
    • Availability: In Stock

    Fluke 718 30G Pressure Calibrator (2 bar)Powerpro company Limited is the distributor, supplier and service provider of ( Test Equipment Product Sales, Test Equipment Calibration, Test Equipment Rentals and Product Training) in Nigeria. Product overview: Fluke 718 Pressure Calibrator The complete solution to pressure calibration The Fluke 718 Pressure Calibrator...



    Add to quote

    Fluke 718 30G Pressure Calibrator (2 bar)

    Powerpro company Limited is the distributor, supplier and service provider of ( Test Equipment Product Sales, Test Equipment Calibration, Test Equipment Rentals and Product Training) in Nigeria.

    Product overview: Fluke 718 Pressure Calibrator

    The complete solution to pressure calibration

    The Fluke 718 Pressure Calibrator provides a total pressure calibration solution for transmitters, gauges and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). The unique easy to clean pump helps protect the pump from damage and provides the ability to service the pump without disassembly, even in the field.

    Key features

    • Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device
    • Integrated pump is easily cleaned when accidently exposed to fluids that reduces cost of ownership and repairs and enables servicing the pump in the field
    • Error % calculation for quicker pass/fail decision making in the field
    • Best in class mA accuracy of 0.015% for better measurement confidence and workload coverage
    • Min/Max/Hold to capture changing measurements
    • Switch test feature for quicker and more accurate pressure switch testing
    • New 1 and 300 psi pressure ranges mean fewer extra tools required
    • 1, 30, 100 & 300 psi ranges now available

    Specifications: Fluke 718 Pressure Calibrator

    Technical Specifications
    Fluke 718 Series
    Measure pressure (Internal sensor)
    Accuracy 0.025% full scale
    Functions Zero, min/max, hold, damp
    Dry air, non-corrosives only
    Fluke 718 1G
    Range -1 psi to +1 psi, -68.9 mbar to 68.9 mbar (-6.89 kPa to 6.89 kPa)
    Resolution 0.0001 psi, 0.001 mbar, 0.0001 kPa
    Over pressure 5x Full Scale
    Functions Zero, Min, Max, Hold, Damp
    Fluke 718 30G
    Range -12 psi to 30 psi, (-850 mbar to 2 bar, -85 to 206.84 kPa)
    Resolution 0.001 psi, 0.1 mbar, 0.01 kPa
    Over pressure 5x Full Scale
    Functions Zero, Min, Max, Hold, Damp
    Fluke 718 100G
    Range -12 psi to 100 psi, (-850 mbar to 7 bar, -85 to 689.48 kPa)
    Resolution 0.01 psi, 0.1 mbar, 0.01 kPa
    Over pressure 2x Full Scale
    Functions Zero, Min, Max, Hold, Damp
    Fluke 718 300G
    Range -12 psi to 300 psi, (-850 mbar to 20 bar, -85 to 2068.42 kPa)
    Resolution 0.01 psi, 1 mbar, 0.1 kPa
    Over pressure 375 psi 25 bar
    Functions Zero, Min, Max, Hold, Damp
    Fluke 718 series via 700 Series Pressure Modules
    Range 29 pressure modules, 0 – 1 inH20 to 10,000 psi, 2.5 mbar to 700 bar. Over pressure per pressure module specs
    Resolution Per pressure module specs
    Accuracy To 0.025% of full span, per pressure module specs
    Functions Zero, Min, Max, Hold, Damp
    Media compatibility per pressure module specs
    Fluke 718 Series Via Built in Pump
    Range -12 psi or -850 mbar to full scale Supported Pressure Units; psi, inH20 (4°C), inH20 (20°C), cmH20 (4°C), cmH20 (20°C), bar, mbar, kPa, inHg, mmHg, kg/cm
    Loop power range 24 V DC
    Accuracy ±10%
    Drive; 20 mA into 1000 Ω for battery > 6.8 V; 700 Ω for battery 5.8 to 6.8 V
    mA Measure
    Range 0 mA to 24 mA
    Resolution 0.001 mA
    Accuracy 0.015% + 1 count
    General Specifications
    Maximum voltage 30 volts (non-operating)
    Temperature -40°C to 60°C
    Operating temperature -10°C to 55°C
    Relative humidity 95% (10°C to 30°C); 75% (30°C to 40°C); 45% (40°C to 50°C); 35% (50°C to 55°C)
    Operating altitude 3,000 M max
    Shock 1 M drop test
    Vibration Random, 2 g, 5 Hz – 500 Hz
    Safety CSA C22.2 No. 1010.1: 1992
    EMC EN50082-1: 1992 and EN55022: 1994 Class B
    Size 216 x 94 x 66 mm (8.50 x 3.72 x 2.60 in)
    Weight 992 g (35 oz)
    Power, battery life 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline; two batteries in 718
    Battery life 4 to 20 hours typical, depending on functions used
    Warranty Three years (one year on pressure pump in Fluke 718)
    Display LCD, 5 digit pressure and current simultaneous
    For use with non-corrosive gasses
