Fluke 715 Current & Voltage Calibrator, Max Voltage 20V, Max Current 24mA
Powerpro company Limited is the distributor, supplier and service provider of ( Test Equipment Product Sales, Test Equipment Calibration, Test Equipment Rentals and Product Training) in Nigeria.
Product Details

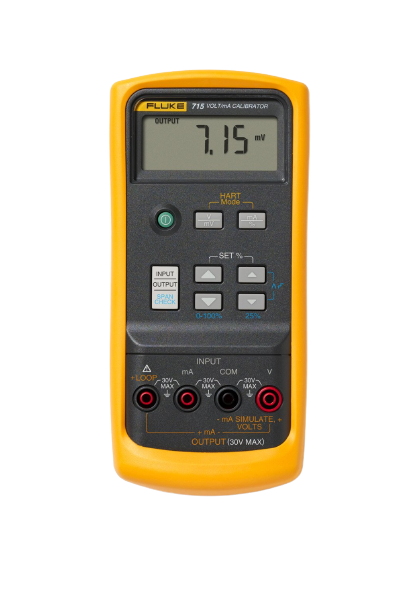

Fluke Current and Voltage Loop Calibrator
The Fluke current and voltage calibrator delivers outstanding performance, durability and reliability. The calibrator measures loop current (0 mA to 20 mA, 4 mA to 20 mA) signals with 0.01% accuracy and 0.001 mA resolution. It can source precision voltage signals up to 20V with 0.01% accuracy. Offered in the rugged Fluke 80 series DMM package, the calibrator is compact, lightweight, and easy to carry. Its pushbutton interface makes it extremely easy to use, similar to the multifunction Fluke 750 calibrators. It is EMI tolerant, dust, and splash resistant and also features a removable battery door for quick battery changes.
Features and Benefits
Clear 5-digit LCD display
Operating temperature ranges between -10°C and +55°C
Measure voltage output process signals from PLCs, transmitters
Source or simulate 24mA loop current
Source voltage to 200mV or 10V
Provides 24V loop supply with simultaneous current measurement
Display mA or % of span
Dimensions of 201 x 98 x 52mm in the format of (L x W x D)
250 ohm HART resistor with loop power
Holster features test lead storage
Compatible with tool pack magnetic hanging system
Step and linear ramp output function
Configurable zero and span settings
Operating temperature ranges between -10°C and +55°C
Measure voltage output process signals from PLCs, transmitters
Source or simulate 24mA loop current
Source voltage to 200mV or 10V
Provides 24V loop supply with simultaneous current measurement
Display mA or % of span
Dimensions of 201 x 98 x 52mm in the format of (L x W x D)
250 ohm HART resistor with loop power
Holster features test lead storage
Compatible with tool pack magnetic hanging system
Step and linear ramp output function
Configurable zero and span settings
Applications
Electrical servicing and maintenance
Laboratories
Electronic servicing and maintenance
Industrial automation
Laboratories
Electronic servicing and maintenance
Industrial automation
Certifications
CE certified
CSA certified
CSA certified
Specifications
| Attribute | Value |
| Absolute Maximum Voltage Measurement | 20V |
| Absolute Maximum Current Measurement | 24mA |
| Best Accuracy | ±0.015 % |
| Power Source | Battery |
| Battery Type | 9 V |
| Dimensions | 52 x 98 x 201mm |
| Weight | 600g |
| Height | 201mm |
| Length | 52mm |
| Maximum Operating Temperature | +55°C |
| Maximum Source Current | 24mA |
| Maximum Source Voltage | 10V |
| Safety Category Voltage | 30V |
| Minimum Source Current | 0mA |
| Model Number p | 715 |
| Minimum Operating Temperature | -10°C |
| Minimum Source Voltage | 0V |
| Width | 98mm |
