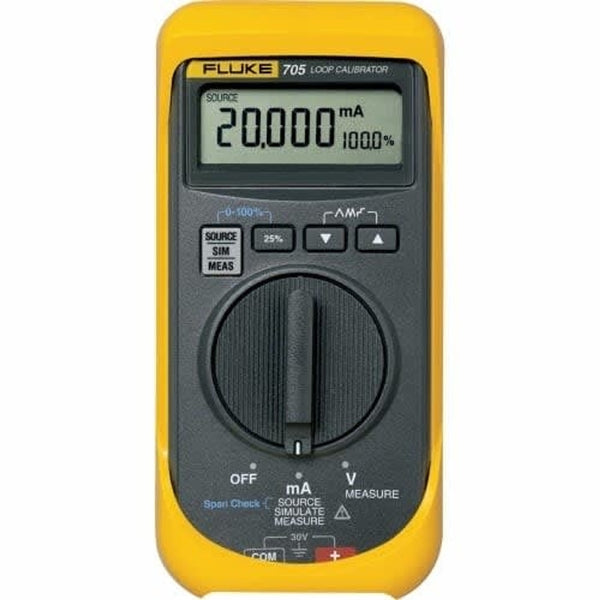

Fluke 705 Loop Calibrator, .02% Accuracy
₦722,892.16
₦926,905.26
The Fluke 705 Loop Calibrator is a cost-effective, integrated solution for calibration, repair and maintenance of current loops. Product Features: mA sourcing, simulation and measurement 0.02 % accuracy and 0.001 mA resolution Simultaneous mA and % of span display Selectable step or ramp outputs 24V loop supply with mA measure...
The Fluke 705 Loop Calibrator is a cost-effective, integrated solution for calibration, repair and maintenance of current loops.
Product Features:
- mA sourcing, simulation and measurement
- 0.02 % accuracy and 0.001 mA resolution
- Simultaneous mA and % of span display
- Selectable step or ramp outputs
- 24V loop supply with mA measure
- 0V DC to 28V DC measurement to check loop voltage
- Removable battery door for quick battery replacement
- Compact case with protective holster
- Maximum voltage: 30 volts
- Non-operating temperature: -4° to 60°C
- Operating temperature: -10° to 55°C
- Relative humidity: 95% (10° to 30°C); 75% (30° to 40°C); 45% (40° to 50°C); 35 % (50° to 55°C)
- Operating altitude: 3,000 m max
- Shock: 1 m drop test
- Vibration: Random, 2g, 5 Hz to 500 Hz
- Safety ratings: CSA C22.2 No. 1010.1:1992
- EMC: EN50082-1:1992 and EN55022:1994 Class B
- Power: 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline
