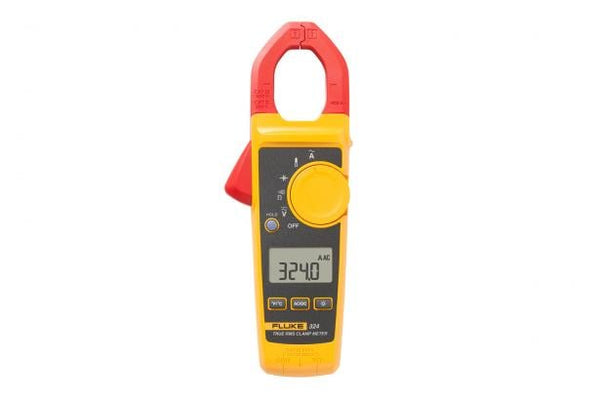

Fluke 324 True RMS Clamp Meter

Fluke 324 True RMS Clamp Meter

Vendor: Fluke

Regular price ₦97,138.80 Sale

Compare

Product overview: Fluke 324 True-RMS Clamp Meter with Temperature & Capacitance

The Fluke 324 True-RMS Clamp Meter is a reliable, solid troubleshooting tool for commercial and residential electricians, featuring True-RMS measurements, a slim design for easy transport and use, and a large display for efficient troubleshooting. With the addition of Temperature and Capacitance, it has everything an HVAC technician could need.

Troubleshoot problems safely and accurately

  • CAT III 600 V, CAT IV 300 V safety rating
  • Provides True RMS AC voltage and current for accurate measurements on non-linear signals
  • Measures AC/DC current up to 400 A
  • Measures AC/DC voltage to 600V
  • Measures resistance to 4kΩ with continuity detection ≤ 30Ω
  • Measures temperature from -10C to 400C
  • Measures capacitance to 1000μF
  • Backlight and hold function captures a reading on the display
  • Comes with a two-year warranty and soft carrying case

Fluke 320 Series Clamp Meters for electrical troubleshooting


Clamp family models and feature comparison

Contents:

  • Fluke 324 True-RMS Clamp Meter
  • TL75 Test Leads
  • Type K Thermocouple
  • Two AAA Batteries (Installed)
  • Soft Case

Key Features:

  • Rugged, reliable True-RMS clamp meter with dc current and frequency measurements
  • Measures AC and DC current to 400 A
  • Measures AC voltage and DC voltage to 600 V
  • Provides True RMS AC voltage and current for accurate measurements on non-linear signals
  • Measures resistance to 40 kΩ with continuity detection
  • Measures frequency to 500 Hz

Specifications: Fluke 324 True-RMS Clamp Meter with Temperature & Capacitance

Specifications
AC current Range 40.00 A / 400.0 A
Accuracy 1.5% ± 5 digits (45 Hz to 400 Hz)
Note: Add 2% for position sensitivity
DC current Range -
Accuracy -
AC voltage Range 600.0 V
Accuracy 1.5% ± 5 digits
DC voltage Range 600.0 V
Accuracy 1.0% ± 5 digits
Resistance Range 400.0 Ω/ 4000 Ω
Accuracy 1.0% ± 5 digits
Continuity ≤ 30 Ω
Capacitance 0 to 100.0 μF / 100μF to 1000 μF
Frequency -
AC response True-RMS
Backlight Yes
Data hold Yes
Contact temperature -10.0°C to 400.0°C (14.0°F to 752.0°F)
Min/Max -
Size H x W x D (mm) 207 x 75 x 34
Max wire diameter 30 mm (600 MCM)
Weight 208 g
Category rating CAT III 600 V
CAT IV 300 V
Warranty Two-year
