Fluke 123B/INT/S Industrial ScopeMeter SCC 20MHZ, INT

SKU: Fluke-123B/INT/S
Brand: Fluke

Availability: In Stock

Fluke 123B/INT/S Industrial ScopeMeter SCC 20MHZ, INTPowerpro company Limited is the distributor, supplier and service provider of ( Test Equipment Product Sales, Test Equipment Calibration, Test Equipment Rentals and Product Training) in Nigeria. FLUKE-123B/INT/S FLUKE-123B/INT/S,INDUSTRIAL SCOPEM+SCC 20MHZ, UNIVERSAL INT The FLUKE 123B/INT/S is a 120B series ScopeMeter handheld oscilloscope with...

Fluke 123B/INT/S Industrial ScopeMeter SCC 20MHZ, INT

Powerpro company Limited is the distributor, supplier and service provider of ( Test Equipment Product Sales, Test Equipment Calibration, Test Equipment Rentals and Product Training) in Nigeria.

FLUKE-123B/INT/S FLUKE-123B/INT/S,INDUSTRIAL SCOPEM+SCC 20MHZ, UNIVERSAL INT

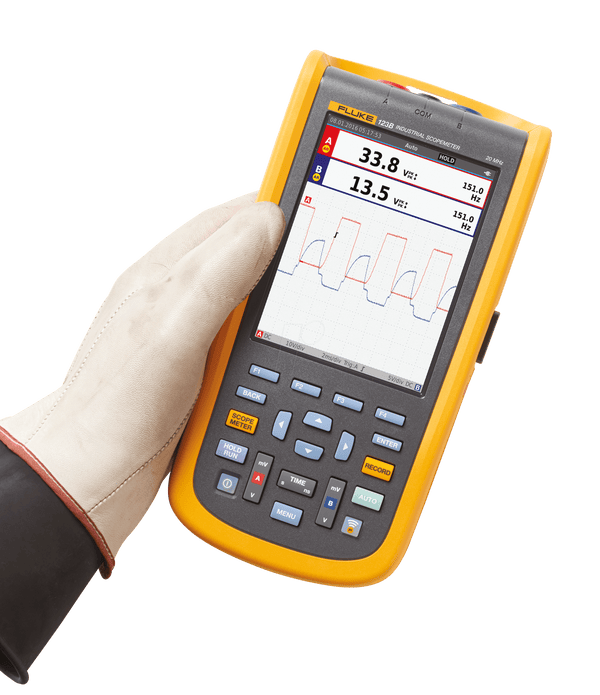

The FLUKE 123B/INT/S is a 120B series ScopeMeter handheld oscilloscope with 20MHz bandwidth, 2 analog channels and a universal plug. It is a rugged oscilloscope solution for industrial electrical and electro-mechanical equipment troubleshooting and maintenance applications. This is a truly integrated test tool with an oscilloscope, multimeter and high-speed recorder in one easy to use instrument. It also integrates with the Fluke Connect mobile app and FlukeView for ScopeMeter software to enable further collaboration, data analysis and archiving of critical test information. The 123B includes innovative functions designed to help technicians troubleshoot faster and it has rugged design to withstand 3g vibration and 30g shock. IntellaSet technology automatically and intelligently adjusts numerical readout based on measured signal. The oscilloscope is IP51 rated according to EN/IEC60529. It has 5.7inch colour active matrix TFT display (640 x 480 pixels) and qualified by 600V CAT IV, CE, CSA.

Rise time of less than 17.5ns and input impedance of 1Mohm/20pF (without probes and test leads)
Maximum sample rate of 400KSPS, optically isolated USB interface
Meter and scope recorder, full function dual input scope and meter
Simplified testing, more insight and faster electromechanical troubleshooting
Dual input digital oscilloscope and two 5000 count true RMS digital multimeters
Dual input waveform and meter reading recorder for trending data over extended periods
Recorder event detect captures elusive intermittent signals on repetitive waveforms up to 4KHz
Voltage, current and power harmonics, power measurements (W, VA, VAR, PF, DPF, Hz)
Dimension is 259mm x 132mm x 55mm (10.2inch x 5.2inch x 2.15inch) and weight is 1.4Kg
Operating temperature range from 0°C to 40°C (battery operation) & 0°C to 50°C (power adapter)

Applications

Test & Measurement

Fluke 123B/S hand-held oscilloscope, Shielded test leads with black ground leads, Black test lead (for grounding), Hook clips (red, blue), Banana to BNC adapters (black, x1), USB angled adapter, Wi-Fi USB adapter, Switch mode power supply, Adapter/battery charger, Rechargeable Li-ion battery pack, Soft carrying case, Magnetic hanger, FlukeView ScopeMeter software for Windows, Screen protector.
