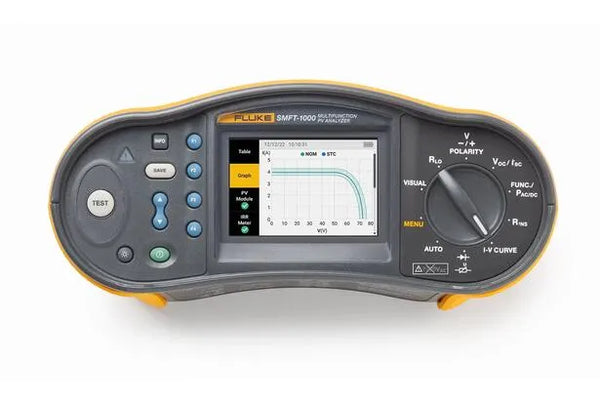

SMFT-1000 Solar Tools Kit: Fluke Multifunction PV Tester and Performance Analyzer, I-V Curve Tracer
SMFT-1000 Solar Tools Kit: Fluke Multifunction PV Tester and Performance Analyzer, I-V Curve Tracer Your tool for next-generation machinery alignment Key features All-in-one PV system test solution meeting IEC 62446-1 standards for Category 1 and Category 2 tests Open-circuit voltage (VOC) measurement at the PV module/string up to 1000 V...
SMFT-1000 Solar Tools Kit: Fluke Multifunction PV Tester and Performance Analyzer, I-V Curve Tracer
Your tool for next-generation machinery alignment
Key features
- All-in-one PV system test solution meeting IEC 62446-1 standards for Category 1 and Category 2 tests
- Open-circuit voltage (VOC) measurement at the PV module/string up to 1000 V DC
- Short-circuit (ISC) current measurement at the PV module/string up to 20 A DC
- On-location I-V curve results compares manufacturer I-V curve data to measured data on the analyzer screen, accurately measures modules with an efficiency of up to approximately 19%
- Compatible with Fluke TruTest™ data management software
Fluke Premium Care eligible
When you invest in your Fluke test tools, you want your money to go as far as possible. Fluke Premium Care is a paid offering that provides coverage above and beyond the original product warranty, so you don’t need to worry about unexpected downtime caused by damaged test equipment, accessories, or tools in need of calibration or repair.
Specifications: SMFT-1000 Solar Tools Kit: Fluke Multifunction PV Tester and Performance Analyzer, I-V Curve Tracer
| Fluke SMFT-1000 Multifunction PV Analyzer | |||
| Protective conductor resistance (RLo) | |||
| Display range | Measuring range | Resolution | Accuracy |
| 0.00 Ω - 19.99 Ω | 0.20 Ω - 19.99 Ω | 0.01 Ω | ± (2 % + 2 Digit) |
| 20.0 Ω- 199.9 Ω | 20.0 Ω - 199.9 Ω | 0.1 Ω | ± (2 % + 2 Digit) |
| 200 Ω - 2000 Ω | 200 Ω - 2000 Ω | 1 Ω | ± (5 % + 2 Digit) |
| Test current | ≥ 200 mA (≤ 2Ω + Rcomp) | ||
| Test voltage | 4 V DC … 10 V DC | ||
| Polarity reversing | Yes | ||
| Test lead zero (Rcomp) | Up to 3 Ω | ||
| PV module/PV string, open-circuit voltage (Voc) | |||
| Display range | Measuring range | Resolution | Accuracy |
| 0.0 V - 99.9 V | 5.0 V - 99.9 V | 0.1 V | ± (0.5 % + 2 Digit) |
| 100 V - 1000 V | 100 V - 1000 V | 1 V | ± (0.5 % + 2 Digit) |
| Polarity test | Yes | ||
| PV module/PV string, short-circuit current (Is/c) | |||
| Display range | Measuring range | Resolution | Accuracy |
| 0.0 A - 20.0 A | 0.2 A - 20.0 A | 0.1 A | ± (1 % + 2 Digit) |
| Insulation resistance (RINS) | |||
| Display range | Measuring range | Resolution | Accuracy |
| 0.00 MΩ - 99.99 MΩ | 0.20 MΩ - 99.99 MΩ | 0.01 MΩ | ± (5 % + 5 Digit) |
| 100.0 MΩ - 199.9 MΩ | 100.0 MΩ - 199.9 MΩ | 0.1 MΩ | ± (10 % + 5 Digit) |
| 200 MΩ - 999 MΩ | 200 MΩ - 999 MΩ | 1 MΩ | ± (20 % + 5 Digit) |
| Measuring range | Resolution | Accuracy | |
| Test voltage @ no load | 50 V / 100 V / 250 V up to 199.9 MΩ 500 V / 1000 V up to 999 MΩ |
1 V | 0 % to + 20 % |
| Test voltage @ ≥ 1 mA | 250 V @ 250 kΩ 500 V @ 500 kΩ 1000 V @ 1 MΩ |
1 V | 0 % to + 10 % |
| Testing current | Min. 1 mA (@ 250 kΩ / 500 kΩ / 1 MΩ) Max. 1.5 mA (short circuit) |
||
| Blocking diode checking (Vbd) | |||
| Display range | Measuring range | Resolution | Accuracy |
| 0.00 V DC - 6.00 V DC | 0.50 V DC - 6.00 V DC | 0.01 V DC | ± (5 % + 10 Digit) |
| Surge protection device (SPD) | |||
| Display range | Measuring range | Resolution | Accuracy |
| 0 V DC - 1000 V DC | 50 V DC - 1000 V DC | 1 V DC | ± (10 % + 5 Digit) |
| AC/DC voltage measurement via 4 mm test sockets | |||
| Display range | Measuring range | Resolution | Accuracy |
| 0.0 V AC - 99.9 V AC | 5.0 V AC - 99.9 V AC | 0.1 V | ± (2.5 % + 2 Digit) |
| 100 V AC - 700 V AC | 100 V AC - 700 V AC | 1 V | ± (2.5 % + 2 Digit) |
| 0.0 V DC - 99.9 V DC | 5.0 V DC - 99.9 V DC | 0.1 V | ± (2.5 % + 2 Digit) |
| 100 V DC - 1000 V DC | 100 V DC - 1000 V DC | 1 V | ± (2.5 % + 2 Digit) |
| Detection AC/DC | Yes (Automatic) | ||
| + / - polarity check | Yes | ||
| AC/DC current with i100 clamp | |||
| Display range | Measuring range | Resolution | Accuracy (DC, AC 50 Hz/60 Hz) |
| 0.0 A DC – 100 A DC | 1.0 A DC – 100 A DC | 0.1 A | ± (5 % + 2 Digit) * |
| 0.0 A AC – 100 A AC TRMS | 1.0 A AC – 100 A AC TRMS | 0.1 A | ± (5 % + 2 Digit) * |
| * i100 clamp tolerances not inclusive | |||
| i100 Clamp Tolerances | |||
| Display range | Measuring range | Output signal | Accuracy (DC, AC 50 Hz/60 Hz) |
| N/A | 1 A - 100 A DC or AC < 1 kHz | 10 mV/A AC/DC | ± (1.5 % + 0.1 A) |
| AC/DC Power measurement (with i100 clamp) | |||
| Display range | Measuring range | Resolution | Accuracy (DC, AC 50 Hz/60 Hz) |
| 0.0 V AC - 700 V AC 0.0 V DC - 1000 V DC |
5.0 V AC - 700 V AC 5.0 V DC - 1000 V DC |
0.1 V | ± (2.5 % + 2 Digit) |
| 0 A AC/DC - 100 A AC/DC | 1 A AC/DC- 100 A AC/DC | 0.1 A | ± (6.5 % + 3 Digit) |
| 0 kW/kVA – 100 kW/kVA | 5 kW/kVA – 100 kW/kVA | 1 kW/kVA | ± (10 % + 4 Digit) |
| General Specifications | |||
| SMFT-1000 size | 10 cm x 25.0 cm x 12.5 cm (3.8 in x 9.8 in x 4.9 in) | ||
| SMFT-1000 weight | 1.4 kg (3.09 lb) | ||
| Battery | 6 AA IEC LR6 | ||
| Operating temperature | 0 °C to 50 °C (32 °F to 122 °F) | ||
| Storage temperature | -30 °C to 60 °C (-22 °F to 140 °F) batteries removed | ||
| Operating altitude | up to 2000 m | ||
| Storage altitude | up to 2000 m | ||
| Safety | |||
| SMFT-1000 PV Analyzer | IEC 61010-1 Pollution Degree 2 IEC 61010-2-034 CAT III 1000 V dc, CAT III 700 V AC |
||
| i100 Current Clamp | IEC 61010-2-032, Type D (for insulated conductors), 1000 V | ||
| Accessories | IEC 61010-031 | ||
| TL1000-MC4 | CAT III 1500 V, 20 A | ||
| TP1000 Remote Probe (with cap) | CAT IV 600 V, CAT III 1000 V, 10 A | ||
| TP1000 Remote Probe (without cap) | CAT II 1000 V, 10 A | ||
| TL1000 Test Leads | CAT III 1000 V, 10 A | ||
| TL1000/30M Test Leads | CAT III 1000 V, CAT IV 600 V, 5 A (on reel) 10 A (fully extended) |
||
| TP74 Test Probes (with cap) | CAT III 1000 V, 10 A | ||
| TP74 Test Probes (without cap) | CAT II 1000 V, 10 A | ||
| AC285 Alligator Clip | CAT III 1000 V, 10 A | ||
| Performance | IEC 61557-1, IEC 61557-2, IEC 61557-4, IEC 61557-10 | ||
| Electromagnetic Compatibility (EMC) | |||
| International | IEC 61326-1: Portable Electromagnetic Environment, CISPR 11: Group 1, Class A Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. |
||
| Wireless Radio Module | |||
| Frequency Range | 2.402 GHz to 2.480 GHz | ||
| Output Power | 8 dBm | ||
Accurately measures modules with an efficiency of up to approximately 19%.
