Allen-Bradley 194R-N30-1753 Non-Fused 194R Disconnect Switch
Allen-Bradley 194R-N30-1753 Non-Fused 194R Disconnect SwitchDescriptionAllen Bradley Guardmaster DIN Rail Non-Fused Switch Disconnector, 3 Pole, 30A Maximum Current - 194R-N30-1753Need to safely access your electrical equipment during maintenance? Use this switch disconnector from Rockwell Automation's Allen Bradley Guardmaster range. When activated, it cuts off power to the electrical circuits, minimising...
Allen-Bradley 194R-N30-1753 Non-Fused 194R Disconnect Switch
Description
Allen Bradley Guardmaster DIN Rail Non-Fused Switch Disconnector, 3 Pole, 30A Maximum Current - 194R-N30-1753
Need to safely access your electrical equipment during maintenance? Use this switch disconnector from Rockwell Automation's Allen Bradley Guardmaster range. When activated, it cuts off power to the electrical circuits, minimising the risk of electrical hazards while you're handling it. A high voltage capacity of 250V DC and 500V AC makes it suitable for use in powerful systems. Thanks to the DIN rail mounting style, installation is quick and you can attach additional protective devices to enhance the safety setup in your industrial environment.
• Can be padlocked to prevent tampering
• IP66 (ingress protection) rating indicates it's dustproof and protected against high-pressure jets of water
• Comes with test mode for added safety
• High current rating of 30A to withstand heavy electrical loads
• IP66 (ingress protection) rating indicates it's dustproof and protected against high-pressure jets of water
• Comes with test mode for added safety
• High current rating of 30A to withstand heavy electrical loads
Standards and Certifications
• UL (Underwriters' Laboratories)
• CSA (Canadian Standards Association)
• CE (Conformitè Europëenne)
• IEC 60947-3 (International Electrotechnical Commission)
• CSA (Canadian Standards Association)
• CE (Conformitè Europëenne)
• IEC 60947-3 (International Electrotechnical Commission)

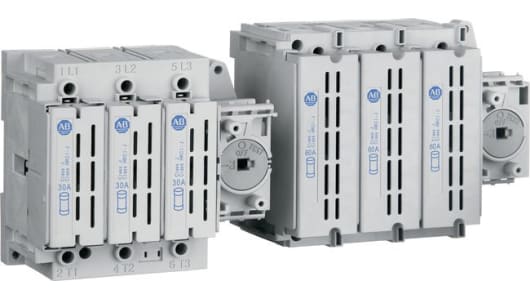

194R Fused and Non-Fused Disconnected Switches, Open, 30 A, 3 Pole.
How does this non-fused switch disconnector work?
This non-fused switch disconnector uses a rotary lever instead of a fuse to disengage the circuits. You can manually reset it by turning the lever, which eliminates the need to replace a fuse.
Specifications
| Attribute | Value |
| Number of Poles | 3P |
| Maximum Current | 30A |
| Mounting Type | DIN Rail |
| IP Rating | IP66 |
| Voltage Rating | 250 V dc, 600V ac |
| Electrical Phase | 1, 3 |
| Accepts Padlocks | Yes |
| Series | 194R |
| Length | 120mm |
| Width | 101mm |
| Depth | 108mm |
