    Allen Bradley Colour Sensors 11 mm, RGB LED IO-Link, NPN/PNP x 2, 60 mA, 10 ? 30 V dc, IP67

    Description

    45CRM Colour Registration Mark Sensors


    Allen Bradley 45CRM colour registration mark sensors have a high-speed response time and emit three LED colours (red, green and blue) to discern the difference in colour response between the mark and background. IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device-specific parameters

    Features and Benefits


    IO-Link communication

    Provides fast 40 ?s response time

    Dynamic teach and static teach methods

    2 x PNP/NPN (push-pull) outputs

    Compact size

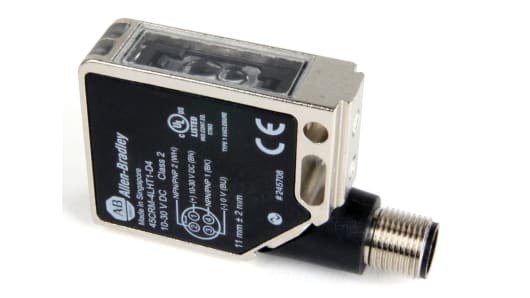

    Allen Bradley Colour Sensor, 11mm Detection Range, IO-Link - 45CRM-4LHT2-D4


    This colour sensor from Rockwell Automation's Allen Bradley range scans the surfaces of objects to ensure they match a pre-set colour. It projects red, green and blue LED lights and measures the differences in their reflections to determine the object's colour. A fast response time of 40?s (microseconds) ensures quick colour detection to reduce downtime and improve efficiency. Thanks to its broad operating temperature range of -20°C to +60°C, this device is suitable for use in demanding industrial environments.

    • Die-cast zinc housing material is corrosion-resistant for long-lasting performance
    • IP67 (ingress protection) rating for protection against dust and submersion in 1m of water for up to 30 minutes
    • Rotary switch to easily adjust sensitivity rate

    Standards and Certifications


    • CE (Conformitè Europëenne)
    • cULus (Underwriters' Laboratories in Canada and the US)

    What's the difference between a colour sensor and a contrast sensor?


    A colour sensor like this unit is specifically designed to read the colour of an object, while a contrast sensor measures the differences in the shades of a colour compared to a pre-set value.

    Specifications

    Attribute Value
    Detection Range 11 mm
    Light Source RGB LED
    Output Type NPN/PNP x 2
    Maximum Current 60 mA
    Switching Frequency 8 (Flashing) Hz
    Electrical Connection 4-Pin M12 Micro Quick Disconnect
    Supply Voltage 10 ? 30 V dc
    LED Status Display Yes
    Terminal Type 4-Pin Connector
    Housing Material Die Cast Zinc
    Series 45CRM
    Interface IO-Link
    IP Rating IP67
    Minimum Operating Temperature -20°C
    Maximum Operating Temperature +60°C
    Mounting Type Flange Mount
