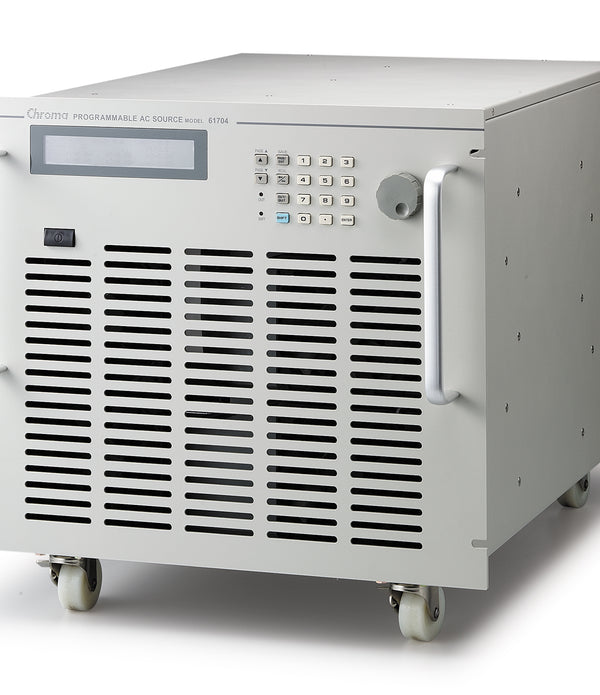

MODEL 61700 SERIES PROGRAMMABLE AC POWER SOURCE |Buy Now

KEY FEATURES

■ Power: 1500VA, 3Ø (61701) 3000VA, 3Ø (61702) 4500VA, 3Ø (61703) 6000VA, 3Ø (61704) 12000VA, 3Ø (61705)

■ Voltage: 0~150V/0~300V Frequency: 15~1.2KHz Phase angle: 0~360˚ Programmable

■ Built-in PFC, provides input power factor over 0.98

■ Advanced PWM technology delivers high power density in a compact rack-mountable package

■ Built-in output isolation relays

■ AC+DC output mode

■ Programmable slew rate setting for changing voltage

■ Turn on, turn off phase angle control

■ User-definable power-on status

■ Optional function for power line disturbance (PLD) simulation capability

■ Comprehensive measurement capability: V, Irms, Ipk, I inrush, P, PF, CF of current etc.

■ Programmable r.m.s. current limit

■ Full protection: OP, OC, OV and OT protection

■ Optional GPIB and RS-232C interface

■ Easy-use software for operation

The Chroma Programmable AC Power Source model 61700 series delivers pure, 5-wire, 3-phase AC power. Unlike traditional 3-phase AC sources, it includes low power rating models at very low cost. Users can program voltage and frequency, and measure the critical characteristics of the output on its LCD display.

It provides the ability to simulate all kinds of UUT input conditions to be utilized in R&D and QA. It is also suitable for commercial applications from laboratory testing to mass production. The 61700 series AC Source supplies output voltages from 0 to 300VAC and can be set individually for each phase. Users also can set the phase angle from 0° to 360°. These kinds of functions allow the 61700 series to simulate unbalanced 3-phase power.

With a wide output frequency range, from 15 to 1200Hz, it is suitable for avionics and military applications. The AC+DC mode extends the output function to simulate abnormal situations when the power line contains a DC offset. The 61700 series uses state-of-the-art PWM technology and a power factor correction circuit. These features allow it to generate very clean AC output with a typical distortion of less than 0.3%, and it can yield higher efficiency and deliver more output power than other sources on the market.

By using advanced DSP technology, the 61700 series offers precise, high speed measurements including RMS voltage, RMS current, true power, power factor, current crest factor, and more. T h e 61700 s e r i e s o ff e r s a n o p t i o n a l function to output transient voltage. This function includes LIST, PULSE, STEP and INTERHARMONICS modes. Users can easily program variant waveforms for immunity tests.

The 61700 series can also be remotely controlled via powerful and user-friendly softpanel software through GPIB or RS-232 interfaces. The softpanel also includes a waveform editor that can edit up to 40th order harmonic components. With this, the 61700 series has the ability to output any distorted waveform desired. With the self-diagnosis routine and protection against over power, over current, over voltage, over temperature, and fan fail, the 61700 series ensures quality and reliability for even the most demanding engineering testing and production line applications.
