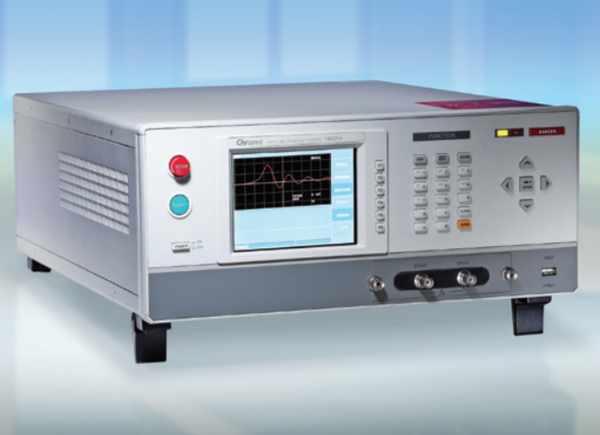

IMPULSE WINDING TESTER MODEL 19301A

    • SKU:
    • Brand: Chroma
    • Availability: Out Of Stock

    IMPULSE WINDING TESTER MODEL 19301A |Buy Now KEY FEATURES ■ Apply high/low inductance test (0.1uH~100uH) ■ 10V~1000V impulse voltage test, with 0.06V test resolution ■ 18mS high speed test (P1.0 for ACQ) ■ Inductance contact check function ■ Inductance differential voltage compensation function ■ High impulse test sampling rate (200MHz),10bits...



    Add to quote

    IMPULSE WINDING TESTER MODEL 19301A |Buy Now

    KEY FEATURES

    ■ Apply high/low inductance test (0.1uH~100uH)

    ■ 10V~1000V impulse voltage test, with 0.06V test resolution

    ■ 18mS high speed test (P1.0 for ACQ)

    ■ Inductance contact check function

    ■ Inductance differential voltage compensation function

    ■ High impulse test sampling rate (200MHz),10bits

    ■ Breakdown Voltage Analysis (BDV)

    ■ Low voltage range to increase the sensibility of waveform analysis (25V/50V/100V/200V/400V/800V/1000V)

    ■ Traditional Chinese/Simplified Chinese/ English user interface

    ■ USB port for storing waveform & screen capture

    ■ Graphical color display

    ■ Standard LAN, USB and RS232 interface
