weidmuller LM2N 3.50/04/90 3.2SN OR BX - 1703700000 LM PCB Terminal Block, 3.5mm Pitch, Solder Termination
Product Description

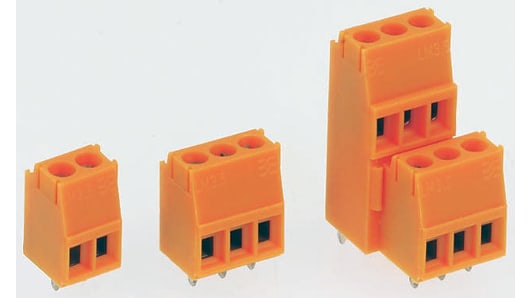

weidmuller 3.5mm Pitch Vertical Mount Terminals
LM Series screw clamp terminals extend cost saving and space saving requirements on printed circuit boards. The terminals feature a proven clamping yoke connection.
Features and Benefits
• Small and compact in size
• Faster speed of assembly
• Accepts up to 1.5 mm² (28-16 AWG) conductors
• 2 and 3 way models are single height and side stackable
• 4 to 16 way models are supplied as double height modules
Specifications
Product Description
• Faster speed of assembly
• Accepts up to 1.5 mm² (28-16 AWG) conductors
• 2 and 3 way models are single height and side stackable
• 4 to 16 way models are supplied as double height modules
Specifications
Attribute | Value |
Pitch | 3.5mm |
Mounting Type | Through Hole |
Termination Method | Solder |
Current Rating | 13A |
Colour | Orange |
Voltage Rating | 320 V |
Series | LM |
Material | Nylon |
