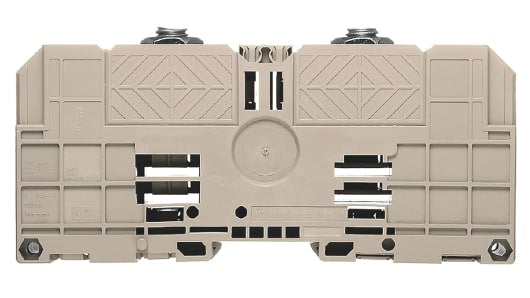

weidmuller 1028600000 Dark Beige WFF DIN Rail Terminal Block, Single level, 10 ? 240mm², 1 kV
weidmuller 1028600000 Dark Beige WFF DIN Rail Terminal Block, Single level, 10 ? 240mm², 1 kV Product Description WFF Bolt Type Twin-Screw Terminal Blocks W Series (WFF) bolt-type screw terminals. Features and Benefits • Klippon® Connect with stud technology • Robust connection• Suitable for harsh environments• Feed-through terminal• DIN Rail...
weidmuller 1028600000 Dark Beige WFF DIN Rail Terminal Block, Single level, 10 ? 240mm², 1 kV
Product Description
WFF Bolt Type Twin-Screw Terminal Blocks
W Series (WFF) bolt-type screw terminals.
Features and Benefits
• Klippon® Connect with stud technology
• Robust connection
• Suitable for harsh environments
• Feed-through terminal
• DIN Rail mountable
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
W Series (WFF) bolt-type screw terminals.
• Klippon® Connect with stud technology
• Robust connection
• Suitable for harsh environments
• Feed-through terminal
• DIN Rail mountable
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Colour | Dark Beige |
| Number of Levels | Single |
| Series | WFF |
| Termination Method | Bolt |
| Cable CSA | 10 ? 240mm² |
| Current Rating | 415A |
| Voltage Rating | 1 kV |
| Pitch | 55.55mm |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
