weidmuller 1028300000 Brown WFF Stud Terminal, Single level, 35mm², 1 kV
Product Description
Stud Terminals
W series stud terminals available in single or double studs from M6 to M16 accepting up to 300 mm² cables. Manufactured from self-extinguishing polyamide UL94V0 and supplied with nut and spring washer.
Features and Benefits
• Double studs with integral partitions
• Easily cross connectable between different size terminals due to common base height
• Robust connection for harsh environments
Approvals
CSA; UL

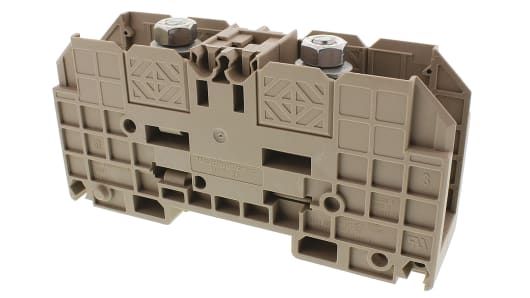

Weidmuller Stud Terminal, 107mm Height, 27mm Width - WFF Series - 1028300000
For a stable wire connection that stops current surges in their tracks, choose this stud terminal from Weidmuller. This single-level unit has two connections, so you'll find it's a cinch to set up a dual-wiring system. The threaded clamps keep a tight grip on your wires to prevent accidental disconnection and ensure reliable signal transmissions. It accepts wires ranging in size from 14 to 2AWG, so you'll have enough room for your thick and thin cables.
Features & Benefits
• Compact dimensions of 107 (H) x 27 (W) x 51mm (D) to add minimal bulk to your setup
• Current rating of 125A for use in high-power applications
• Wemid body has self-extinguishing properties to help prevent the spread of fire
Applications
• Telecommunications
• Office buildings
• Lighting control
• Food production
How do I mount this stud terminal?
You can mount this terminal by simply snapping it to a DIN rail, so you won't need to reach for any special tools.
What's the operating temperature range of this stud terminal?
Thanks to its wide operating temperature range between -50°C and +120°C, this stud terminal can stand up to use in harsh environments.
Approvals
CSA; UL
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
W series stud terminals available in single or double studs from M6 to M16 accepting up to 300 mm² cables. Manufactured from self-extinguishing polyamide UL94V0 and supplied with nut and spring washer.
• Double studs with integral partitions
• Easily cross connectable between different size terminals due to common base height
• Robust connection for harsh environments
• Easily cross connectable between different size terminals due to common base height
• Robust connection for harsh environments
CSA; UL
For a stable wire connection that stops current surges in their tracks, choose this stud terminal from Weidmuller. This single-level unit has two connections, so you'll find it's a cinch to set up a dual-wiring system. The threaded clamps keep a tight grip on your wires to prevent accidental disconnection and ensure reliable signal transmissions. It accepts wires ranging in size from 14 to 2AWG, so you'll have enough room for your thick and thin cables.
• Compact dimensions of 107 (H) x 27 (W) x 51mm (D) to add minimal bulk to your setup
• Current rating of 125A for use in high-power applications
• Wemid body has self-extinguishing properties to help prevent the spread of fire
• Current rating of 125A for use in high-power applications
• Wemid body has self-extinguishing properties to help prevent the spread of fire
• Telecommunications
• Office buildings
• Lighting control
• Food production
• Office buildings
• Lighting control
• Food production
You can mount this terminal by simply snapping it to a DIN rail, so you won't need to reach for any special tools.
Thanks to its wide operating temperature range between -50°C and +120°C, this stud terminal can stand up to use in harsh environments.
CSA; UL
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Colour | Brown |
| Number of Levels | Single |
| Series | WFF |
| American Wire Gauge | 14 ? 2AWG |
| Termination Method | Bolt |
| Cable CSA | 35mm² |
| Voltage Rating | 1 kV |
| Current Rating | 125A |
