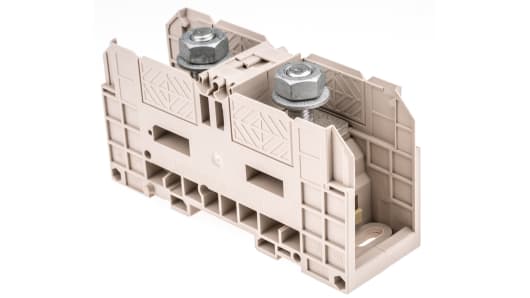

weidmuller 1028500000 Brown WFF Stud Terminal, Single level, 120mm², 1 kV
weidmuller 1028500000 Brown WFF Stud Terminal, Single level, 120mm², 1 kV Product Description Stud Terminals W series stud terminals available in single or double studs from M6 to M16 accepting up to 300 mm² cables. Manufactured from self-extinguishing polyamide UL94V0 and supplied with nut and spring washer. Features and Benefits...
weidmuller 1028500000 Brown WFF Stud Terminal, Single level, 120mm², 1 kV
Product Description
Stud Terminals
W series stud terminals available in single or double studs from M6 to M16 accepting up to 300 mm² cables. Manufactured from self-extinguishing polyamide UL94V0 and supplied with nut and spring washer.
Features and Benefits
• Double studs with integral partitions
• Easily cross connectable between different size terminals due to common base height
• Robust connection for harsh environments
Approvals
CSA; UL
Weidmuller Stud Terminal, DIN Rail Mounting, 132mm Height - WFF Series - 1028500000
Need a solid wire connection that stands up to short circuits and current overloads? Use this stud terminal from Weidmuller. It features threaded stud terminals that tightly hold onto your conductors, ensuring they're in safe hands when things get shaky. Thanks to its tough Wemid body, this unit delivers robust insulation, keeping you safe from shocking incidents like electrical hazards. A wide operating temperature range between -50°C and +120°C means it's always up to the task in harsh industrial environments. Mount this terminal in a jiffy by simply snapping it to a DIN rail.
Features & Benefits
• Accepts wires with a cross section between 6mm² and 150mm² for versatility
• Two clamping points for added security
• Rated impulse withstand voltage of 8kV to prevent damage from powerful surges
• Self-extinguishing for safety in the event of a fire
Applications
• Control panels
• HVAC systems
• Automotive engineering
• Medical and pharmaceutical industry
• Construction sites
What's the current rating of this stud terminal?
Thanks to its maximum current rating of 309A, you can safely use this stud terminal in your high-power electrical systems.
Approvals
CSA; UL
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
W series stud terminals available in single or double studs from M6 to M16 accepting up to 300 mm² cables. Manufactured from self-extinguishing polyamide UL94V0 and supplied with nut and spring washer.
• Double studs with integral partitions
• Easily cross connectable between different size terminals due to common base height
• Robust connection for harsh environments
• Easily cross connectable between different size terminals due to common base height
• Robust connection for harsh environments
CSA; UL
Need a solid wire connection that stands up to short circuits and current overloads? Use this stud terminal from Weidmuller. It features threaded stud terminals that tightly hold onto your conductors, ensuring they're in safe hands when things get shaky. Thanks to its tough Wemid body, this unit delivers robust insulation, keeping you safe from shocking incidents like electrical hazards. A wide operating temperature range between -50°C and +120°C means it's always up to the task in harsh industrial environments. Mount this terminal in a jiffy by simply snapping it to a DIN rail.
• Accepts wires with a cross section between 6mm² and 150mm² for versatility
• Two clamping points for added security
• Rated impulse withstand voltage of 8kV to prevent damage from powerful surges
• Self-extinguishing for safety in the event of a fire
• Two clamping points for added security
• Rated impulse withstand voltage of 8kV to prevent damage from powerful surges
• Self-extinguishing for safety in the event of a fire
• Control panels
• HVAC systems
• Automotive engineering
• Medical and pharmaceutical industry
• Construction sites
• HVAC systems
• Automotive engineering
• Medical and pharmaceutical industry
• Construction sites
Thanks to its maximum current rating of 309A, you can safely use this stud terminal in your high-power electrical systems.
CSA; UL
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Colour | Brown |
| Number of Levels | Single |
| American Wire Gauge | 10AWG |
| Series | WFF |
| Termination Method | Bolt |
| Cable CSA | 120mm² |
| Voltage Rating | 1 kV |
| Current Rating | 309A |
