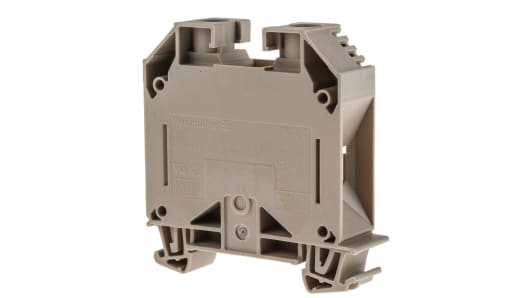

weidmuller 1020500000 Brown WDU Feed Through Terminal Block, Single level, 35mm², ATEX, 1 kV
weidmuller 1020500000 Brown WDU Feed Through Terminal Block, Single level, 35mm², ATEX, 1 kV Product Description ’W’ Series Terminal Blocks One key advantage of the W-Series is the choice of plug-in (ZQV) or screw-in (WQV) cross-connections within one modular terminal. Saving substantial time in comparison to other screw terminals. Features...
weidmuller 1020500000 Brown WDU Feed Through Terminal Block, Single level, 35mm², ATEX, 1 kV
Product Description
’W’ Series Terminal Blocks
One key advantage of the W-Series is the choice of plug-in (ZQV) or screw-in (WQV) cross-connections within one modular terminal. Saving substantial time in comparison to other screw terminals.
Features and Benefits:
Terminals available in a range of colours
Screw-in and a plug-in cross connection system is available for screw terminals
Product Application Information
Handy components to build up your terminal block, with simple time saving options. Thanks to the unique design patent, you can now connect two conductors of the same cross section into the same clamping point without difficulty.
A great solution if you want to connect your assembly together without getting shocked or the possibility of something becoming loose. Simply attach to your terminal block, screw down, and securely clamp in place.
Approvals
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Weidmuller Feed-Through Terminal Block, Screw Terminals, 125A Current Rating - WDU Series - 1020500000
Keen to add extra connections to your industrial system? This Weidmuller terminal block uses a simple feed-through method, so it quickly accepts your conductors to help you speed through wiring tasks. Thanks to its current rating of 125A, this unit packs a punch in high-power applications. Its screw terminals protect conductors against movement to prevent accidental disconnection in shaky situations. As it has an open right-side panel, you get direct access to the block's wiring for easy adjustments, even when it's mounted.
Features & Benefits
• Wemid body provides effective insulation for enhanced electrical safety
• Accepts wires ranging in size from 12 to 2AWG for broad compatibility
• Compact body measurements of 60 (H) x 16 (W) x 62.5mm (D) for a handy fit in busy systems
• Wide operating temperature range of -50°C to +120°C for use in harsh environments
Applications
• Manufacturing industry
• Packing plants
• Renewable energy installations
How do I mount this product into my system?
This unit snaps into place on a standard DIN rail, so you can install it in a jiffy in your existing control cabinets.
Approvals
1-10
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
One key advantage of the W-Series is the choice of plug-in (ZQV) or screw-in (WQV) cross-connections within one modular terminal. Saving substantial time in comparison to other screw terminals.
Terminals available in a range of colours
Screw-in and a plug-in cross connection system is available for screw terminals
Screw-in and a plug-in cross connection system is available for screw terminals
Handy components to build up your terminal block, with simple time saving options. Thanks to the unique design patent, you can now connect two conductors of the same cross section into the same clamping point without difficulty.
A great solution if you want to connect your assembly together without getting shocked or the possibility of something becoming loose. Simply attach to your terminal block, screw down, and securely clamp in place.
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Keen to add extra connections to your industrial system? This Weidmuller terminal block uses a simple feed-through method, so it quickly accepts your conductors to help you speed through wiring tasks. Thanks to its current rating of 125A, this unit packs a punch in high-power applications. Its screw terminals protect conductors against movement to prevent accidental disconnection in shaky situations. As it has an open right-side panel, you get direct access to the block's wiring for easy adjustments, even when it's mounted.
• Wemid body provides effective insulation for enhanced electrical safety
• Accepts wires ranging in size from 12 to 2AWG for broad compatibility
• Compact body measurements of 60 (H) x 16 (W) x 62.5mm (D) for a handy fit in busy systems
• Wide operating temperature range of -50°C to +120°C for use in harsh environments
• Accepts wires ranging in size from 12 to 2AWG for broad compatibility
• Compact body measurements of 60 (H) x 16 (W) x 62.5mm (D) for a handy fit in busy systems
• Wide operating temperature range of -50°C to +120°C for use in harsh environments
• Manufacturing industry
• Packing plants
• Renewable energy installations
• Packing plants
• Renewable energy installations
This unit snaps into place on a standard DIN rail, so you can install it in a jiffy in your existing control cabinets.
1-10
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Colour | Brown |
| Number of Levels | Single |
| American Wire Gauge | 12 ? 2AWG |
| Series | WDU |
| Termination Method | Screw |
| Cable CSA | 35mm² |
| Voltage Rating | 1 kV |
| Current Rating | 125A |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
| Hazardous Area Certification | ATEX |
