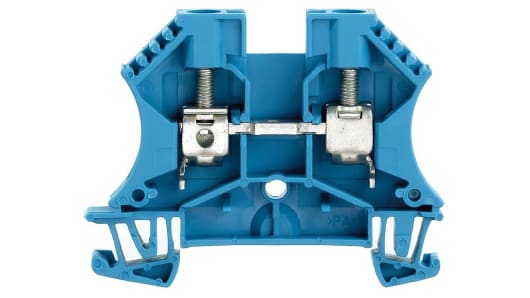

weidmuller 1020280000 Blue WDU Feed Through Terminal Block, 6mm², 800 V
weidmuller 1020280000 Blue WDU Feed Through Terminal Block, 6mm², 800 V Product Description Neutral terminal blocks for TS 35 rails Feed-through Screw terminal blocks for cables with cross section 2.5 to 35 mm². The terminals are equipped with integral anti-slackening protection and guarantee reliable connection in all low voltage installations....
weidmuller 1020280000 Blue WDU Feed Through Terminal Block, 6mm², 800 V
Product Description
Neutral terminal blocks for TS 35 rails
Feed-through Screw terminal blocks for cables with cross section 2.5 to 35 mm². The terminals are equipped with integral anti-slackening protection and guarantee reliable connection in all low voltage installations.
Features and Benefits
• Low profile range of terminals that enables transition from a height of 47 mm for standard versions to 37.5 mm
• Mounted in TS 35 type DIN Rails with a depth of 7.5 mm or 15 mm
• The nominal characteristics are defined in accordance with VDE 0611
Approvals
UL, CSA, GOST
Standards
IEC 60947-7-1
Specifications
Product Description
Feed-through Screw terminal blocks for cables with cross section 2.5 to 35 mm². The terminals are equipped with integral anti-slackening protection and guarantee reliable connection in all low voltage installations.
• Low profile range of terminals that enables transition from a height of 47 mm for standard versions to 37.5 mm
• Mounted in TS 35 type DIN Rails with a depth of 7.5 mm or 15 mm
• The nominal characteristics are defined in accordance with VDE 0611
• Mounted in TS 35 type DIN Rails with a depth of 7.5 mm or 15 mm
• The nominal characteristics are defined in accordance with VDE 0611
UL, CSA, GOST
IEC 60947-7-1
Specifications
| Attribute | Value |
| Colour | Blue |
| Series | WDU |
| American Wire Gauge | 22 ? 8AWG |
| Cable CSA | 6mm² |
| Voltage Rating | 800 V |
| Current Rating | 50A |
