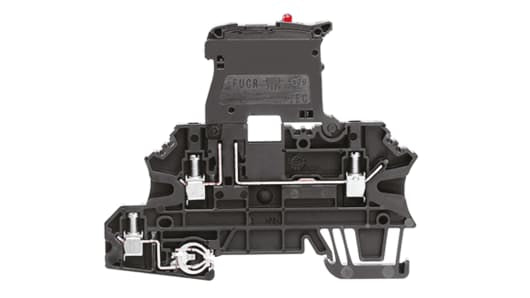

weidmuller 1163080000 Black W Fused DIN Rail Terminal, Double level, 2.5mm², 250 V
weidmuller 1163080000 Black W Fused DIN Rail Terminal, Double level, 2.5mm², 250 V Product Description WMF Fuse Terminal Blocks Multi-functional terminal blocks provide a multi-functional solution for routing and distributing signals. The terminals are compact and space-saving and can be used with feed-through, fuse and disconnect functionality. Features and Benefits...
weidmuller 1163080000 Black W Fused DIN Rail Terminal, Double level, 2.5mm², 250 V
Product Description
WMF Fuse Terminal Blocks
Multi-functional terminal blocks provide a multi-functional solution for routing and distributing signals. The terminals are compact and space-saving and can be used with feed-through, fuse and disconnect functionality.
Features and Benefits
• Combined functionality in a single solution
• Integrated shield connection
• Wide variety of labelling options
• Screw connection
• DIN Rail mounting
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
Multi-functional terminal blocks provide a multi-functional solution for routing and distributing signals. The terminals are compact and space-saving and can be used with feed-through, fuse and disconnect functionality.
• Combined functionality in a single solution
• Integrated shield connection
• Wide variety of labelling options
• Screw connection
• DIN Rail mounting
• Integrated shield connection
• Wide variety of labelling options
• Screw connection
• DIN Rail mounting
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Colour | Black |
| Number of Levels | Double |
| American Wire Gauge | 26 ? 12AWG |
| Series | W |
| Termination Method | Screw |
| Cable CSA | 2.5mm² |
| Fused | Yes |
| Current Rating | 6.3A |
| Voltage Rating | 250 V |
| Pitch | 5.08mm |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +120°C |
