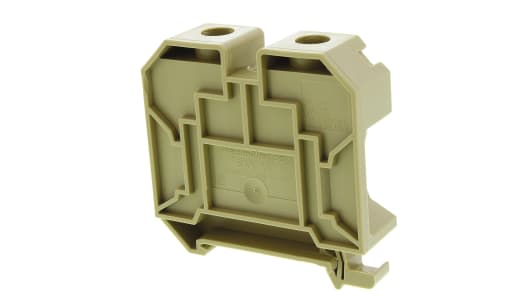

weidmuller 0380760000 Beige SAK Feed Through Terminal Block, Single level, 35mm², 800 V
weidmuller 0380760000 Beige SAK Feed Through Terminal Block, Single level, 35mm², 800 V Product Description SAK TS35 Range High quality, industry standard terminals designed for mounting on symmetrical TS35 (top-hat profile) DIN Rail. With high reliability and variety of designs, the SAK series from Weidmuller make planning easier and optimise...
weidmuller 0380760000 Beige SAK Feed Through Terminal Block, Single level, 35mm², 800 V
Product Description
SAK TS35 Range
High quality, industry standard terminals designed for mounting on symmetrical TS35 (top-hat profile) DIN Rail. With high reliability and variety of designs, the SAK series from Weidmuller make planning easier and optimise safety. The terminals are manufactured from polyamide 6.6 with a working temperature of -50°C to +100°C, and meet the requirements of IEC 60947-1.
Features and Benefits
• AP SAK End plates available in 4 sizes to suit 2.5 mm² to 35 mm² terminals
• Partitions available in both beige (RS ) and blue (RS , RS , RS )
• Flammability class UL 94V-2
• Clamping yoke technology
Approvals
CSA certified, UL listed, NEMKO, ATEX, and IECEx
SAK Series
Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
Specifications
Product Description
High quality, industry standard terminals designed for mounting on symmetrical TS35 (top-hat profile) DIN Rail. With high reliability and variety of designs, the SAK series from Weidmuller make planning easier and optimise safety. The terminals are manufactured from polyamide 6.6 with a working temperature of -50°C to +100°C, and meet the requirements of IEC 60947-1.
• AP SAK End plates available in 4 sizes to suit 2.5 mm² to 35 mm² terminals
• Partitions available in both beige (RS ) and blue (RS , RS , RS )
• Flammability class UL 94V-2
• Clamping yoke technology
CSA certified, UL listed, NEMKO, ATEX, and IECEx
SAK Series
Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
Specifications
| Attribute | Value |
| Colour | Beige |
| Number of Levels | Single |
| American Wire Gauge | 12 ? 2AWG |
| Series | SAK |
| Termination Method | Screw |
| Cable CSA | 35mm² |
| Current Rating | 150A |
| Voltage Rating | 800 V |
| Minimum Operating Temperature | -60°C |
| Maximum Operating Temperature | +130°C |
