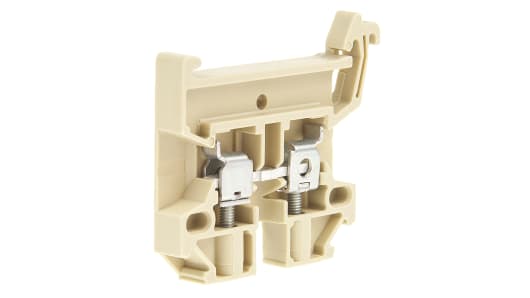

weidmuller 0380460000 Beige SAK Feed Through Terminal Block, Single level, 2.5mm², ATEX, IECEx, 800 V
Product Description
SAK TS35 Range
High quality, industry standard terminals designed for mounting on symmetrical TS35 (top-hat profile) DIN Rail. With high reliability and variety of designs, the SAK series from Weidmuller make planning easier and optimise safety. The terminals are manufactured from polyamide 6.6 with a working temperature of -50°C to +100°C, and meet the requirements of IEC 60947-1.
Features and Benefits
• AP SAK End plates available in 4 sizes to suit 2.5 mm² to 35 mm² terminals
• Partitions available in both beige (RS ) and blue (RS , RS , RS )
• Flammability class UL 94V-2
• Clamping yoke technology
Approvals
CSA certified, UL listed, NEMKO, ATEX, and IECEx
Weidmuller Feed-Through Terminal Block, 24A Current Rating, 26 to 10AWG Wire Size - SAK Series - 0380460000
Need to add components to your rail-mounted circuits? This Weidmuller terminal block is the right fit for your system. It forms a temporary connection between two conductors, making swapping wires a walk in the park. Thanks to its current rating of 24A, you can trust it to withstand the shock of large electrical loads. When it comes to mounting this device, it's snap-happy as it clips quickly to your rails with no tools for hassle-free installation. Screw terminals mean your connections are secure, even when operating conditions get shaky.
• Works with wires sized between 26 and 10AWG, making it suitable for many standard connectors
• Insulating PA66 housing helps minimise the risk of electrical hazards
• Compact dimensions of 44.5 (H) x 6.1 (W) x 40mm (D) mean it's a sure fit for busy rails
• Open side panel provides convenient view of connections for ease of inspection
Applications
• Printing industry
• Food production
• Automotive manufacturing
Can I use this terminal block at extreme temperatures?
Yes, this unit has a wide operating temperature range of -50°C to +100°C, so you can use it in demanding conditions.
SAK Series
Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
Specifications
Product Description
High quality, industry standard terminals designed for mounting on symmetrical TS35 (top-hat profile) DIN Rail. With high reliability and variety of designs, the SAK series from Weidmuller make planning easier and optimise safety. The terminals are manufactured from polyamide 6.6 with a working temperature of -50°C to +100°C, and meet the requirements of IEC 60947-1.
• AP SAK End plates available in 4 sizes to suit 2.5 mm² to 35 mm² terminals
• Partitions available in both beige (RS ) and blue (RS , RS , RS )
• Flammability class UL 94V-2
• Clamping yoke technology
CSA certified, UL listed, NEMKO, ATEX, and IECEx
Need to add components to your rail-mounted circuits? This Weidmuller terminal block is the right fit for your system. It forms a temporary connection between two conductors, making swapping wires a walk in the park. Thanks to its current rating of 24A, you can trust it to withstand the shock of large electrical loads. When it comes to mounting this device, it's snap-happy as it clips quickly to your rails with no tools for hassle-free installation. Screw terminals mean your connections are secure, even when operating conditions get shaky.
• Works with wires sized between 26 and 10AWG, making it suitable for many standard connectors
• Insulating PA66 housing helps minimise the risk of electrical hazards
• Compact dimensions of 44.5 (H) x 6.1 (W) x 40mm (D) mean it's a sure fit for busy rails
• Open side panel provides convenient view of connections for ease of inspection
• Insulating PA66 housing helps minimise the risk of electrical hazards
• Compact dimensions of 44.5 (H) x 6.1 (W) x 40mm (D) mean it's a sure fit for busy rails
• Open side panel provides convenient view of connections for ease of inspection
• Printing industry
• Food production
• Automotive manufacturing
• Food production
• Automotive manufacturing
Yes, this unit has a wide operating temperature range of -50°C to +100°C, so you can use it in demanding conditions.
SAK Series
Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
Specifications
| Attribute | Value |
| Colour | Beige |
| Number of Levels | Single |
| Series | SAK |
| American Wire Gauge | 26 ? 10AWG |
| Termination Method | Screw |
| Cable CSA | 2.5mm² |
| Fused | Yes |
| Current Rating | 41A |
| Voltage Rating | 800 V |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +100°C |
| Hazardous Area Certification | ATEX, IECEx |
| Standards Met | CCC, CE, CSA, DNV, EAC, UKCA |
| Model Number | SAK 2.5/35 |
