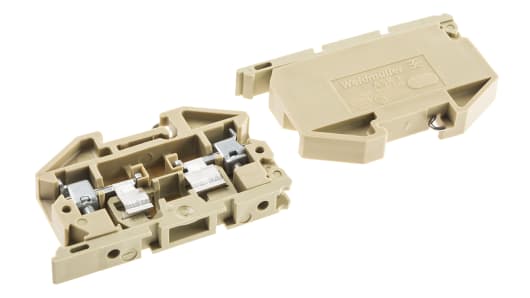

weidmuller 0376860000 Beige ASK Fused DIN Rail Terminal, Single level, 500 V
weidmuller 0376860000 Beige ASK Fused DIN Rail Terminal, Single level, 500 V Product Description AKZ Miniature Series Miniature terminals, designed for mounting on 15 mm symmetrical rail to BS 6273:1982 TS15. The range is ideally suited for use in terminal boxes or areas where space is at a premium. Features...
weidmuller 0376860000 Beige ASK Fused DIN Rail Terminal, Single level, 500 V
Product Description
AKZ Miniature Series
Miniature terminals, designed for mounting on 15 mm symmetrical rail to BS 6273:1982 TS15. The range is ideally suited for use in terminal boxes or areas where space is at a premium.
Features and Benefits
• Moulded in polyamide 6.6 with tin plated brass contacts
• Suited to a temperature range of -50°C to +100°C
Note
Voltage and current ratings are with respective to VDE
Warning
Isolating terminals must only be used for isolating sections of a circuit for test purposes. They must NOT be used to switch services on or off when power is applied.
Approvals
(1) CSA certified, (2) UL recognised
Approvals
1, 2
AKZ Miniature Series
Approvals
(1) CSA certified, (2) UL recognised
Specifications
Product Description
Miniature terminals, designed for mounting on 15 mm symmetrical rail to BS 6273:1982 TS15. The range is ideally suited for use in terminal boxes or areas where space is at a premium.
• Moulded in polyamide 6.6 with tin plated brass contacts
• Suited to a temperature range of -50°C to +100°C
• Suited to a temperature range of -50°C to +100°C
Voltage and current ratings are with respective to VDE
Isolating terminals must only be used for isolating sections of a circuit for test purposes. They must NOT be used to switch services on or off when power is applied.
(1) CSA certified, (2) UL recognised
1, 2
AKZ Miniature Series
(1) CSA certified, (2) UL recognised
Specifications
| Attribute | Value |
| Colour | Beige |
| Number of Levels | Single |
| Series | ASK |
| Termination Method | Screw |
| Fused | Yes |
| Voltage Rating | 500 V |
| Current Rating | 6.3A |
| Pitch | 8mm |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +100°C |
