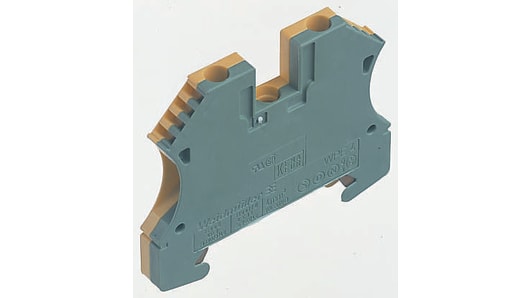

weidmuller 1010100000 2-Way WPE 4 Earth Block, 10 ? 22 AWG Wire, Screw Down, Wemid Housing, ATEX
Product Description
Earth Terminals
Earth terminals or ground terminals are versatile because they can hold a diverse range of different wire sizes, meaning you have lots of practical options. Weidmuller earth blocks have a great range, giving you a choice of finding exactly the right product you need for your machine. They offer protective insulation so you can be confident that your product is safe and secure. The screw-mounted connection ensures that they are firmly clamped into position, so you don’t have to worry about loose wires.
Benefits
• Holds different wire sizes
• Protective insulation
• Screw mounted connection
Typical Applications
Designed to give you the best conductivity in applications such as control panels and rails.
Approvals
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Weidmuller Earth Terminal Block, 800V Voltage Rating, 56mm Length - W Series - 1010100000
Shield your industrial equipment from electrical hazards using this earth terminal block from Weidmuller. It works by deflecting electrical current to the ground, protecting the system from damage. Thanks to its two-way design, you can insert up to two wires into this unit for versatility. The durable housing is made from Wemid for resistance to impact and heat. This material also has self-extinguishing properties, so you can safely use this component in fire-prone areas.
Features & Benefits
• DIN rail mounting for hassle-free installation
• Wide operating temperature range between -50°C and +120°C for use in harsh industrial environments
• Accommodates wire sizes between 26 and 10AWG for versatility
• Green and yellow housing for ease of identification in a colour-coded setup
Applications
• Control cabinets
• Railways
• Power plants
How do I connect my wires to this terminal block?
Thanks to its screw-down termination method, you can insert your wires into this terminal block by using a screwdriver to tighten them to the clamping point. This ensures a secure connection that won't come loose in the event of heavy vibrations.
Approvals
1-10
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
Product Description
Earth terminals or ground terminals are versatile because they can hold a diverse range of different wire sizes, meaning you have lots of practical options. Weidmuller earth blocks have a great range, giving you a choice of finding exactly the right product you need for your machine. They offer protective insulation so you can be confident that your product is safe and secure. The screw-mounted connection ensures that they are firmly clamped into position, so you don’t have to worry about loose wires.
• Holds different wire sizes
• Protective insulation
• Screw mounted connection
• Protective insulation
• Screw mounted connection
Designed to give you the best conductivity in applications such as control panels and rails.
CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR
Shield your industrial equipment from electrical hazards using this earth terminal block from Weidmuller. It works by deflecting electrical current to the ground, protecting the system from damage. Thanks to its two-way design, you can insert up to two wires into this unit for versatility. The durable housing is made from Wemid for resistance to impact and heat. This material also has self-extinguishing properties, so you can safely use this component in fire-prone areas.
• DIN rail mounting for hassle-free installation
• Wide operating temperature range between -50°C and +120°C for use in harsh industrial environments
• Accommodates wire sizes between 26 and 10AWG for versatility
• Green and yellow housing for ease of identification in a colour-coded setup
• Wide operating temperature range between -50°C and +120°C for use in harsh industrial environments
• Accommodates wire sizes between 26 and 10AWG for versatility
• Green and yellow housing for ease of identification in a colour-coded setup
• Control cabinets
• Railways
• Power plants
• Railways
• Power plants
Thanks to its screw-down termination method, you can insert your wires into this terminal block by using a screwdriver to tighten them to the clamping point. This ensures a secure connection that won't come loose in the event of heavy vibrations.
1-10
The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
Specifications
| Attribute | Value |
| Earth Block Type | WPE 4 |
| Wire Size | 10 ? 22 AWG |
| Colour | Green/Yellow |
| Number of Ways | 2 |
| Termination Method | Screw Down |
| Housing Material | Wemid |
| Voltage Rating | 800 V |
| Length | 56mm |
| Width | 6.1mm |
| Height | 46.5mm |
| Hazardous Area Certification | ATEX |
| Maximum Operating Temperature | +120°C |
| Minimum Operating Temperature | -50°C |
