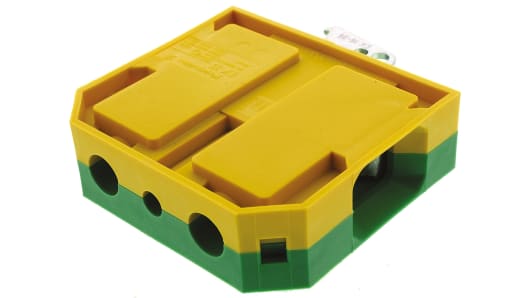

weidmuller 0354760000 2-Way EK 35 Earth Terminal Block, 6 ? 2 AWG Wire, Screw Down, Nylon Housing, ATEX
Product Description
Earth Terminals
These have same dimensions as the standard terminals. Terminals clamp mechanically and electrically to the G type (TS32) DIN rail.
Separation of electrical and mechanical function
Screw or tension clamp for mechanical function
Copper busbar for electrical function
Maintenance free, shock and vibration resistant, screw technology
Low voltage drop, gas tight contact point
High clamping point regardless of cross-section
Approvals
CSA certified, UL listed, VDE PTB, NEMKO, SEV, KEMA, DEMKO, SEMKO
Approvals
7777
SAK Series
Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
Specifications
Product Description
These have same dimensions as the standard terminals. Terminals clamp mechanically and electrically to the G type (TS32) DIN rail.
Separation of electrical and mechanical function
Screw or tension clamp for mechanical function
Copper busbar for electrical function
Maintenance free, shock and vibration resistant, screw technology
Low voltage drop, gas tight contact point
High clamping point regardless of cross-section
Screw or tension clamp for mechanical function
Copper busbar for electrical function
Maintenance free, shock and vibration resistant, screw technology
Low voltage drop, gas tight contact point
High clamping point regardless of cross-section
CSA certified, UL listed, VDE PTB, NEMKO, SEV, KEMA, DEMKO, SEMKO
7777
SAK Series
Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
Specifications
| Attribute | Value |
| Earth Block Type | EK 35 |
| Wire Size | 6 ? 2 AWG |
| Colour | Green/Yellow |
| Number of Ways | 2 |
| Termination Method | Screw Down |
| Housing Material | Nylon |
| Current Rating | 145A |
| Voltage Rating | 800 V |
| Length | 58mm |
| Width | 16mm |
| Height | 67.5mm |
| Maximum Operating Temperature | +80°C |
| Hazardous Area Certification | ATEX |
| Minimum Operating Temperature | -50°C |
