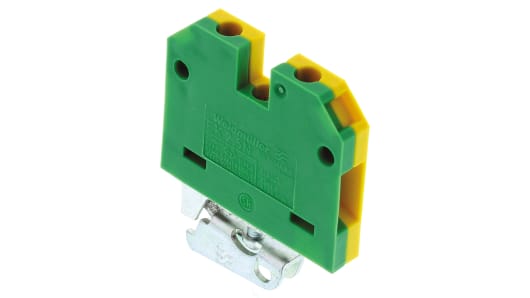

weidmuller 0474360000 2-Way EK 2.5 Earth Terminal Block, 26 ? 12 AWG Wire, Screw Down, Nylon Housing, ATEX
weidmuller 0474360000 2-Way EK 2.5 Earth Terminal Block, 26 ? 12 AWG Wire, Screw Down, Nylon Housing, ATEX Product Description Weidmuller Earth Terminal The Weidmuller earth terminal is a yellow, SAK series EK 2.5N, DIN rail mount power block. It has a 2-way terminals clamp mechanically and electrically to the...
weidmuller 0474360000 2-Way EK 2.5 Earth Terminal Block, 26 ? 12 AWG Wire, Screw Down, Nylon Housing, ATEX
Product Description
Weidmuller Earth Terminal
The Weidmuller earth terminal is a yellow, SAK series EK 2.5N, DIN rail mount power block. It has a 2-way terminals clamp mechanically and electrically to the G type. It has a voltage rating of 800V and current rating of 25A. The earth block dimensions are the length of 36.5mm, the width of 6mm and height of 46.5mm. The separation of electrical and mechanical function by screw or tension and copper bUSBar.
SAK series
Terminals manufactured from polyamide 6.6 with a working temperature between -50°C and 100°C except for the fused terminal block (425-689) which is high-grade melamine with a working temperature between -60°C and 130°C. Asymmetric rail (G-profile) to B 5825: 1980 EN 50035 mount.
Features and Benefits
Plug with protective earth with insulated pins
Easy connection to mains earth for operators
Moulded from ABS
Resistance should be between 0.8Mohm and 1.2Mohm
Applications
Electrical cabling
Factory automation
Approvals
1 - 8
Specifications
Product Description
The Weidmuller earth terminal is a yellow, SAK series EK 2.5N, DIN rail mount power block. It has a 2-way terminals clamp mechanically and electrically to the G type. It has a voltage rating of 800V and current rating of 25A. The earth block dimensions are the length of 36.5mm, the width of 6mm and height of 46.5mm. The separation of electrical and mechanical function by screw or tension and copper bUSBar.
SAK series
Terminals manufactured from polyamide 6.6 with a working temperature between -50°C and 100°C except for the fused terminal block (425-689) which is high-grade melamine with a working temperature between -60°C and 130°C. Asymmetric rail (G-profile) to B 5825: 1980 EN 50035 mount.
SAK series
Terminals manufactured from polyamide 6.6 with a working temperature between -50°C and 100°C except for the fused terminal block (425-689) which is high-grade melamine with a working temperature between -60°C and 130°C. Asymmetric rail (G-profile) to B 5825: 1980 EN 50035 mount.
Plug with protective earth with insulated pins
Easy connection to mains earth for operators
Moulded from ABS
Resistance should be between 0.8Mohm and 1.2Mohm
Easy connection to mains earth for operators
Moulded from ABS
Resistance should be between 0.8Mohm and 1.2Mohm
Electrical cabling
Factory automation
Factory automation
1 - 8
Specifications
| Attribute | Value |
| Earth Block Type | EK 2.5 |
| Wire Size | 26 ? 12 AWG |
| Colour | Green/Yellow |
| Number of Ways | 2 |
| Termination Method | Screw Down |
| Housing Material | Nylon |
| Current Rating | 25A |
| Voltage Rating | 800 V |
| Length | 36.5mm |
| Width | 6mm |
| Height | 46.5mm |
| Maximum Operating Temperature | +80°C |
| Hazardous Area Certification | ATEX |
| Minimum Operating Temperature | -50°C |
