Ventis MX4 - %LEL, O2, CO & H2S - 4 Gas Meter

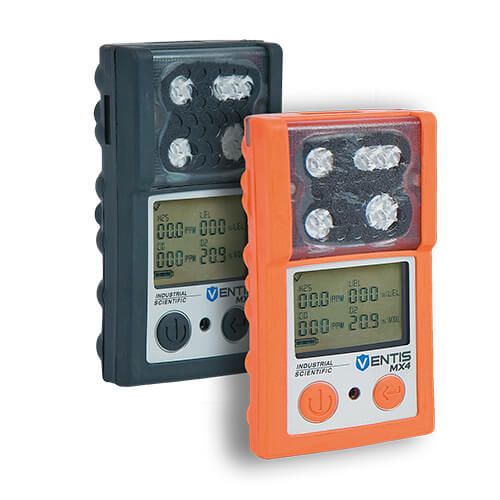

Ventis MX4 4 gas meter

Configured for a total safety, the 4 gas meter Ventis MX4 is a portable multigas detector that takes handheld gas detection devices to the next level. In its standard 4 gas version, the Ventis MX4 can simultaneously measure hazardous concentrations of combustible gases (%LEL), Oxygen (O2), Carbon monoxide (CO) and Hydrogen sulfide (H2S).

This is a very versatile ATEX portable 4 gas meter mainly used in confined spaces, sanitation, steel industry and in almost any application with presence of combustible gas (gas pipes), carbon monoxide (fossil matter combustion), hydrogen sulfide (organic matter fermentation) or oxygen (oxygen deficiency).

Industrial Scientific Ventis MX4 4 gas detector main assets

• Detects from 1 up to 4 gases with a large choice on sensor configuration: EXPLO (0-100% LEL), O2, CO, H2S , O2, (SO2 or NO2 upon request)
• Audible, visual and vibrating alarms. 95 dB audible alarm, ultra-bright visual alarm and strong vibrations
• Robust design for outstanding durability in harshest industrial conditions
• Increased visibility with safety orange over mold
• Compact size and weight, a multi gas detector with dimensions of a single-gas detector for enhanced mobility
• Rechargeable Li-ion battery pack for daily use – more than 12 hours continuously
• Optional slide-on pump to draw samples up to 30 meters

Ventis MX4 4 gas meter technical specifications

• Case material: Polycarbonate with protective over mold
• Alarms: Ultra-bright LEDs, audible alarm (95 dB at 30 cm) and vibrating alarm
• Power supply and runtime: rechargeable Li-ion battery: usually 18 hours at 20° (18 hours for extended battery)
• Dimensions: 103 mm x 58 mm x 30 mm / Weight: 182 gramms
• Ingress protection: IP66 - IP67
• Certifications:
  - ATEX : Ex ia IIC T4 Ga et Ex ia I Ma ; Equipment group II 1G/I M1
  - CSA : Cl I, Div 1, G A-D, T4; Ex d ia IIC T4
  - UL : Cl I, Div 1, Groups A-D, T4; Zone 0, AEx ia IIC T4 ; Cl II, Gr F-G (carbonaceous and grain dust)

Slide-on pump for Ventis MX4 gas detector

The VSP slide-on pump for Ventis MX4 4 gas meter is well-suited for operators who wear their gas detectors as a personal protective equipment but who might need a pump for confined space entries.

• Convenient sampling: remote sampling up to 15 m
• Easy connection: no tool required to connect or remove the pump
• Use the same batteries and chargers than Ventis series: the detector and the slide-on pump use both same batteries that can be easily exchanged between devices
• Case material: Polycarbonate with protective over mold
• Power supply and runtime: rechargeable Li-ion battery: usually 18 hours at 20°
• Dimensions: 143 mm x 81 mm x 68 mm / Weight: 270 gramms
• Ingress protection: IP66 - IP67
• · Approvals:

- ATEX : Ex ia IIC T4 Ga et Ex ia I Ma ; Equipment group II 1G/I M1

- CSA : Cl I, Div 1, G A-D, T4; Ex d ia IIC T4

- UL : Cl I, Div 1, Groups A-D, T4; Zone 0, AEx ia IIC T4 ; Cl II, Gr F-G (carbonaceous and grain dust)
