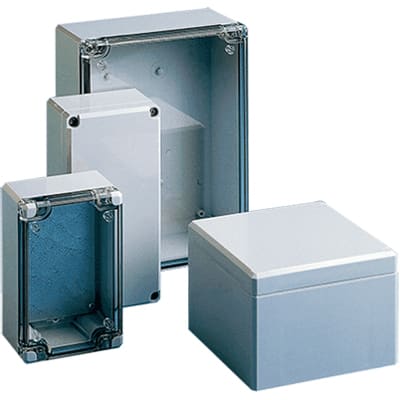

nVent HOFFMAN Q554PCDCC Enclosure 53x55x36mm , 55x53x35mm, Polycarbonate

SKU: Q554PCDCC
Brand: nVent HOFFMAN

Availability: In Stock

Description Hoffman Qline I Series — EMC Type 4X Polycarbonate / ABS Contoured Enclosures:The largest-size enclosures in the QLine EMC series, the screw-cover QLine I protects larger controls from electromagnetic interference in corrosive environments. Features: Body is impact-resistant polycarbonate Enclosure material is RAL 7035 light gray outside. Optional panels are...

Description

Hoffman Qline I Series — EMC Type 4X Polycarbonate / ABS Contoured Enclosures:

The largest-size enclosures in the QLine EMC series, the screw-cover QLine I protects larger controls from electromagnetic interference in corrosive environments.

Features:

Body is impact-resistant polycarbonate

Enclosure material is RAL 7035 light gray outside. Optional panels are conductive steel

Polycarbonate material is easily punched, drilled, filed or sawed

EMC coating in base and cover

Gasket of silver/silicone

Mounting holes molded directly under cover screws

Molded internal pads for mounting optional panels, rails and other components

Molded internal rails for mounting adjustable depth panel kit

Screws provided for mounting optional panel

Easily removable covers attached to body with strong, durable polyamide cross-point cover screws

Shielding effectiveness tested in accordance with: IEEE 299, VG 95-373, part 15, MIL-STD-285

See QLine D product for an example graph showing shielding effectiveness in QLline enclosures
