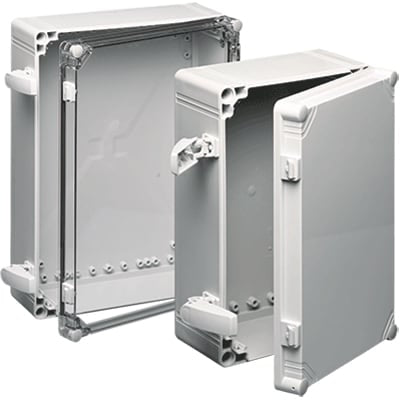

nVent HOFFMAN Q403013PCIQRR PCI Polycarbonate Enclosure, 400 x 300 x 130mm

SKU: Q403013PCIQRR
Brand: nVent HOFFMAN

Availability: In Stock

Description Hoffman Qline I Series — EMC Type 4X Polycarbonate / ABS Contoured Enclosures:The largest-sized QLine enclosure, QLine I provides easy access and protects larger controls from corrosive environments. Choose from screw cover, hinge, internal mounting, variable depth and quick-release latch options to meet your design and security requirements. The...

Description

Hoffman Qline I Series — EMC Type 4X Polycarbonate / ABS Contoured Enclosures:

The largest-sized QLine enclosure, QLine I provides easy access and protects larger controls from corrosive environments. Choose from screw cover, hinge, internal mounting, variable depth and quick-release latch options to meet your design and security requirements. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.

Features:

Body is impact-resistant polycarbonate for PCI series and ABS for ABI series

Polycarbonate and ABS enclosure material is RAL 7035 light-gray inside and out. Optional panels are plated steel

Opaque and clear covers are impact-resistant polycarbonate for PCI; opaque covers are ABS for ABI series

Polycarbonate and ABS material is easily punched, drilled, filed or sawed

Mounting holes molded directly under cover screws

Molded internal pads for mounting optional panels, rails and other components

Molded internal rails for mounting adjustable-depth panel kit

Screws provided for mounting optional panel

Optional extension rings are molded polycarbonate

Cover includes a molded-in hole for wire lead

Seamless foam-in-place gasket assures water-tight and dust-tight seal

Material is halogen free

Screw Cover Enclosures have easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws

Enclosures with Quick-Release Latches have polycarbonate hinges and polyester latches with a padlock provision

***NOTE: Purchase panels and extension rings separately.
— A x B x C are internal dimensions

Accessories for this Range Include:

Brass Insert Kit

Cover Screw Kit

Extension Rings

Hardware Kit

H2Omit Vent Drains, Type 4X

Hinge Kit

Hol-Sealers Non-Metallic Hole Seals

Mounting Bracket Kit

Panel Depth Fitting
