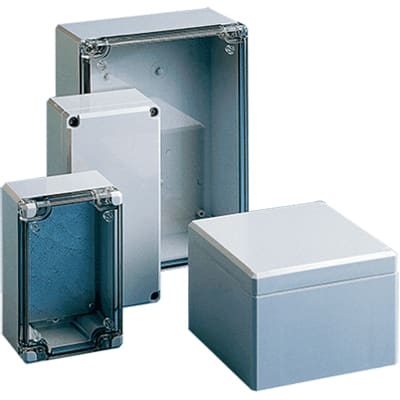

nVent HOFFMAN Q24169PCDCC Enclosure 233x153x83.5mm , 240x160x90mm, Polycarbonate

SKU: Q24169PCDCC
Brand: nVent HOFFMAN

Availability: In Stock

Description Hoffman QLine D Series — EMC Type 4X Polycarbonate / ABS Contoured Enclosures:QLine D polycarbonate EMC enclosures have contoured bodies and flush cover screws for an attractive, contemporary appearance while also providing EMC protection in corrosive environmentsenvironments. Features: Body is impact-resistant polycarbonate EMC conductive coating in base and cover...

Description

Hoffman QLine D Series — EMC Type 4X Polycarbonate / ABS Contoured Enclosures:

QLine D polycarbonate EMC enclosures have contoured bodies and flush cover screws for an attractive, contemporary appearance while also providing EMC protection in corrosive environmentsenvironments.

Features:

Body is impact-resistant polycarbonate

EMC conductive coating in base and cover

Gasket of silver/silicone

Mounting holes molded directly under cover screws

Cross-point captivated cover screws are stainless steel

Mounting tracks along body side walls and bosses on cover for PC card installation

Cover screws protected by removable caps that are both aesthetic and provide tamper resistance

Molded internal pads for mounting optional panels, rails and other components

Screws provided for mounting optional panel

UL 508A Listed; Type 4, 4X, 12, 13

cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No., E61997

Enclosure flammability evaluated per UL 508A
