nVent HOFFMAN Q13810ABE Enclosure 118.5x68.5x92.4mm , 125x75x99mm, ABS

SKU: Q13810ABE
Brand: nVent HOFFMAN

Availability: In Stock

Description Hoffman Qline E Series — EMC Type 4X Polycarbonate / ABS Contoured Enclosures:Qline™ E Enclosures house larger controls, provide additional size-range options and offer greater internal mounting flexibility than smaller Qline products. Featuring contoured bodies with flush cover screws, they are functional in corrosive environments and can withstand occasional...

Description

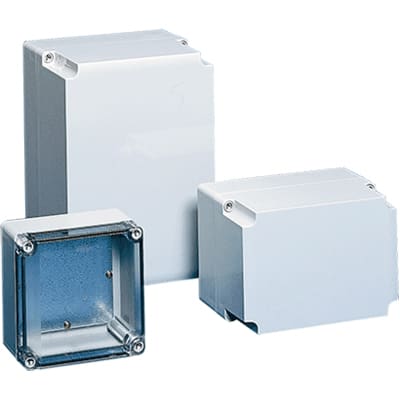

Hoffman Qline E Series — EMC Type 4X Polycarbonate / ABS Contoured Enclosures:

Qline™ E Enclosures house larger controls, provide additional size-range options and offer greater internal mounting flexibility than smaller Qline products. Featuring contoured bodies with flush cover screws, they are functional in corrosive environments and can withstand occasional submersion. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.

Features:

Body is impact-resistant polycarbonate for PCE series and ABS for ABE series

Polycarbonate and ABS enclosure material is RAL 7035 light-gray inside and out. Optional panels are plated steel

Opaque and clear covers are impact-resistant polycarbonate for PCE, opaque covers are ABS for ABE series

Polycarbonate and ABS material is easily punched, drilled, filed or sawed

Cross-point flush cover screws are strong, durable polyamide

Cover includes a molded-in wire lead hole

Mounting tracks along body side walls for PC card installation

Molded internal pads for mounting optional panels, rails and other components

Seamless foam-in-place gasket assures water-tight and dust-tight seal

Material is halogen free

UL 508A Listed; Type 4, 4X, 6, 12, 13; File No. E61997

cUL Listed per CSA C22.2 No 94; Type 4, 4X, 6, 12, 13; File No., E61997

Enclosure flammability evaluated per UL 508A

NEMA/EEMAC Type 4, 4X, 6, 12, 13

CSA File No. 42186: Type 4, 4X, 12, 13

IEC 60529, IP67

***NOTE: Purchase panels and extension rings separately.
— A x B x C are internal dimensions

Accessories for this Range Include:

Brass Inserts

Hardware Kit

Hinge Kit

Hol-Sealers Non-Metallic Hole Seals

Mounting Bracket Kit
