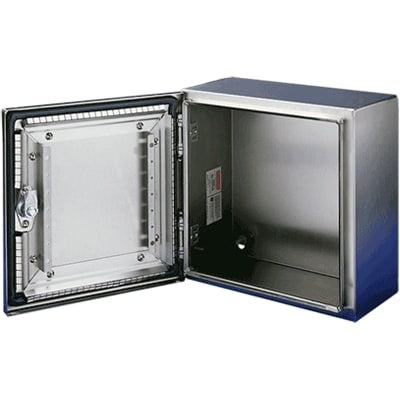

nVent HOFFMAN CSD30248EMCSS Concept EMC, Type 4X, 30.00 x 24.0, 30.00 x 24.00 x 8.00, SS Type 304

SKU: CSD30248EMCSS
Brand: nVent HOFFMAN

Availability: In Stock

Description Hoffman Concept Type 4X Series - Type 4, 316 Stainless Steel, Wall-Mounted | CONCEPT Family:For indoor or outdoor applications that require corrosion protection from chemicals and water. CONCEPT Enclosures feature streamlined styling with an attractive stroked finish and flush quarter-turn latches for secure closure. Available in solid- and window-door...

Description

Hoffman Concept Type 4X Series - Type 4, 316 Stainless Steel, Wall-Mounted | CONCEPT Family:

For indoor or outdoor applications that require corrosion protection from chemicals and water. CONCEPT Enclosures feature streamlined styling with an attractive stroked finish and flush quarter-turn latches for secure closure. Available in solid- and window-door models.

Features:

Panel mounting studs fit optional CONCEPT panels and other accessories

Mounting holes in back of body for direct mounting or for optional external mounting brackets

Manufactured from Type 304 or Type 316L stainless steel

Minimum-width body flange provides maximum body opening

External formed 90-degree body flange

Panel mounting studs fit optional Concept panels and other accessories

Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins

Provision on door (except window-door style and when B = 12 in.) for thermoplastic data pocket

Provision on door (except window-door style and when B = 12 in.) for optional doorstop kit

Quarter-turn latches furnished with flush slotted insert

Seamless foam-in-place gasket

Self-grounding latch system with double seal

Bonding provision on door; grounding stud on body

Furnished hardware kit consists of panel-mounting nuts, panelgrounding hardware and sealing washers for wall-mounting holes

Installation instructions included

Window doors have a clear polycarbonate window

UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997

cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No., E61997

NEMA/EEMAC Type 3R, 4, 4X, 12, 13 | CSA File No. 42186: Type 4, 4X, 12

IEC 60529, IP66

Meets NEMA Type 3RX requirements

***NOTE: Catalog numbers ending in 6 are Type 316L stainless steel.
- Purchase panels separately. Optional stainless steel, composite and aluminum panels are also available for most sizes.
- Optional NEMA style steel and stainless steel panels require conversion kit catalog number CCPM4.

Accessories for this Range Include:

Type 316 Stainless Steel Door Stop Kit

Concept Panels

H2Omit Vent Drains, Type 4X

H2Omit Thermoelectric Dehumidifier

Handles

Lock Inserts
