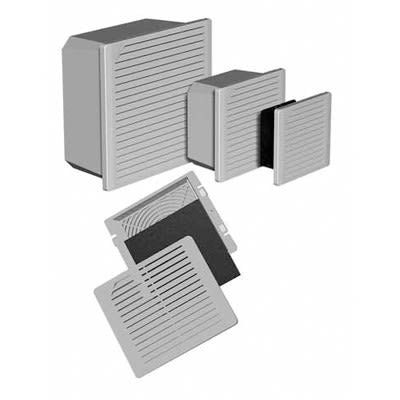

Cooling Fan and Exhaust Packages are designed for limited-space enclosures that require a reliable and filtered airflow. Where positive airflow is not required, Exhaust Packages can be used on both the inlet and outlet.

Engineered for 50,000 hours of continuous operation without lubrication or service. For both Type 1 and Type 12 systems a monthly maintenance schedule is recommended to ensure optimal cooling performance.

Features
• Cooling Fan Package includes fan, air filter, composite air plenum, finger guard and grille
• Exhaust Package includes air filter, filter retainer with integral finger guard and grille
• EMC Upgrade Kit includes a grille standoff collar and a special EMC shielding grille
• Washable foam (Type 1) or disposable (Type 12) filter in fan. Optional washable aluminum air filter is available for Type 1 applications.
• Dynamically-balanced fan impellers molded from polycarbonate material
• 4-in. fan is thermally protected and uses permanently-lubricated ball bearings
• 6- and 10-in. fans have ball bearing construction and splitcapacitor motors that are thermally protected to avoid premature failure
• Fans have leadwires for power connection with ends stripped 1/2 in. (12 mm)
• All mounting hardware and installation instructions are furnished

Filters
- Standard Type 1 air filters are washable foam.
- Type 12 air filters are not washable.

Installation
Fan and exhaust packages can be installed on any surface of an enclosure. They are most effective when the fan assembly is located on a lower panel of the enclosure and the exhaust grille is positioned near the top of the opposite side. This installation assists heat transfer by causing slightly more turbulence and also prolongs the working life of the fan since it is located in the path of the cooler air entering the enclosure.

The height and width of the cooling fans and exhaust grilles can be rotated 90 degrees for mounting on narrow enclosures. Allow adequate clearance for servicing the fan when equipment is installed inside the enclosure and for replacing filters on both the fan and the exhaust. Cutout dimensions for both the fan and the exhaust are shown in the order table. Order the fan and exhaust packages separately.

Finish
- Stainless steel grilles have brushed finish.
- ABS composite grille is black.

Accessories
- Aluminum Type 1 and Hi-Density Type 12 Filters
- EMC Upgrade Kit
- Grille Options:
- Stainless Steel
- Black ABS Plastic
