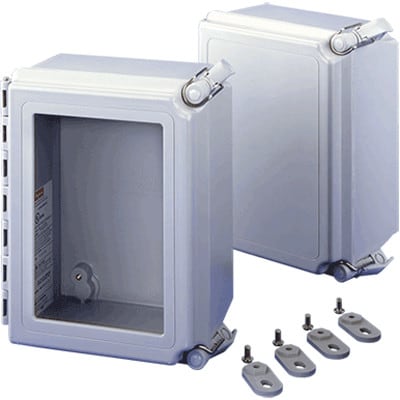

nVent HOFFMAN A664CHSCFG Continuous Hinge Screw-Cover Enclosure 4X, 6x6x4, Light Gray, Fiberglass

SKU: A664CHSCFG
Brand: nVent HOFFMAN

Availability: In Stock

Description Hoffman Concept Type 4 and 12 Series — 16 or 14 Gauge, Type 4 and 12, Flush Quarter-turn Latching | CONCEPT Family:Concept Enclosures are ideal for machine control applications. With streamlined styling, flush quarter-turn latches and an attractive, durable finish. Two-door landscape models provide full-width access and easy panel...

Description

Hoffman Concept Type 4 and 12 Series — 16 or 14 Gauge, Type 4 and 12, Flush Quarter-turn Latching | CONCEPT Family:

Concept Enclosures are ideal for machine control applications. With streamlined styling, flush quarter-turn latches and an attractive, durable finish. Two-door landscape models provide full-width access and easy panel installation. Use stylish Concept EMC Enclosures with their convenient quarter-turn latches in indoor or outdoor applications to contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external EMI/RFI interference.

Features:

16 or 14 gauge steel

Seams continuously welded and ground smooth

Corner-formed doors

Simple easy-to-remove and install hinge pins with built-in captivation clip

High-torque threadless studs and fasteners on door

Minimum-width body flange provides maximum door opening (210 degrees)

Door opens 210 degrees

External formed body flange

Panel mounting studs fit optional Concept panels and other accessories

Mounting holes in back of body for optional external wall-mount brackets

Removable door with hidden hinges for clean, aesthetic appearance

Seamless foam-in-place gasket

Quarter-turn slotted latch(es)

Door alignment device on doors wider than 30 in.

Four hinges on 60in.-high enclosures

Grounding stud on body; bonding provision on door

Provisions on door for optional high-impact thermoplastic data pocket

Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers

Installation instructions provided

Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch

***NOTE: Purchase panels separately.
— Optional NEMA-size panels require conversion kit Catalog Number CCPM4.
— Reference the Specification Sheet for Popular Cooling Products and Popular Accessories

Accessories for this Range Include:

Door Stop Kit

Handles

Lock Inserts

Concept Panels

Mounting-Bracket Kits
