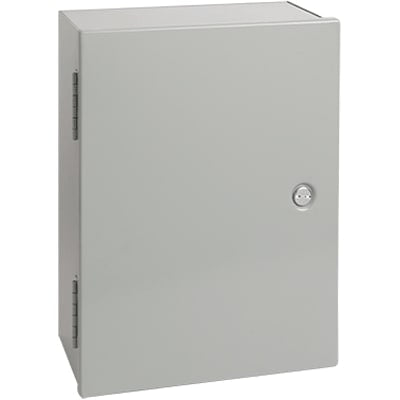

nVent HOFFMAN A36N24BLP Enclosure;Box-Lid;Wallmount;Steel;Gray;36x24x8.62 In;NEMA 1;Hinged;Slotted Latch

  • Description Applications:These enclosures have a size range of 16" × 12" × 6" to 36" × 30" × 12" and meet basic functionality requirements for applications that do not require oil- or dust-tight enclosures.Features:Doors Have Butt Hinges Collar Studs Provided for Mounting Optional Panel Slotted Flush Latch; Optional Latch Available...



    Add to quote

    Description

    Applications:
    These enclosures have a size range of 16" × 12" × 6" to 36" × 30" × 12" and meet basic functionality requirements for applications that do not require oil- or dust-tight enclosures.

    Features:
  • Doors Have Butt Hinges
  • Collar Studs Provided for Mounting Optional Panel
  • Slotted Flush Latch; Optional Latch Available
  • Mounting Holes on Back of Enclosure

    Specifications:
  • 14- or 12-Gauge Steel

    Finish:
    ANSI 61 gray polyester powder paint finish inside and out over pretreated surfaces. Optional solid panels are white and optional perforated panels are gray.

    Industry Standards:
  • UL 50, 50E Listed; Type 1; File No. E27567
  • cUL Listed per CSA C22.2 No. 40; Type 1; File No. E27567
  • NEMA/EEMAC Type 1
  • CSA, File 42184; Type 1
  • IEC 60529, IP 30
