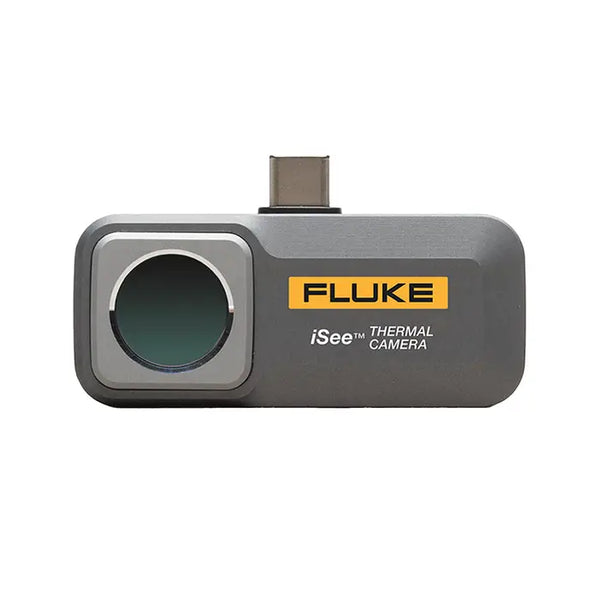

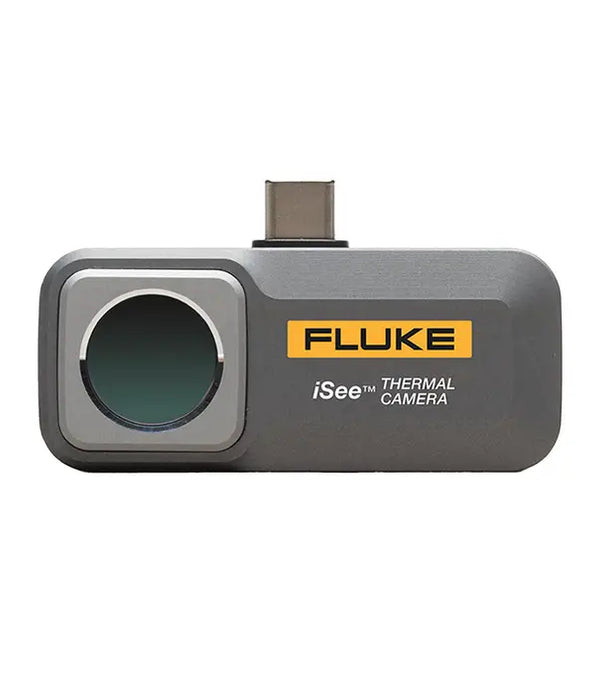

The Fluke TC01A-25HZ iSee Mobile Thermal Imaging Camera boasts professional-grade image quality and allows for inspections on-the-go with the Type-C connection to the user's Android HarmonyOS device. The app software offers comprehensive spot, line, and area temperature analysis for precise diagnostics.

• Frame Rate: 25 Hz
• IR Resolution: 256 x 192 px
• Temperature Range: 14°F to 1022°F
• Thermal Sensitivity (NETD): 50 mK
• Field-of-View: 56° x 42°

The Fluke TC01A25HZ iSee Mobile Thermal Imaging Camera allows for temperature to be measured and thermal imaging detection to be carried out anytime and anywhere by conveniently inserting the instrument into the type-C interface of the user's smartphone. The instrument can be widely used in electrical and mechanical inspections, inspection services, HVAC inspections, product research and development, and quality control applications in order to greatly improve the efficiency of inspections.

The TC01A-25HZ features a type-C interface for use with Android and HarmonyOS devices.

Detailed Image Quality Comparable to Professional Thermal Cameras

The TC01A-25HZ offers detailed image quality with the 256 by 192 pixel resolution. Suited for use in many applications, the high temperature range extends up to 1022 degrees Fahrenheit or 550 degrees Celsius. For fine differences, a 50 milliKelvins thermal sensitivity is offered along with high levels of accuracy for ensuring reliable results. The 25 hertz frame rate allows for smooth video recording and the user can customize the image view with more than 10 standard or custom color palettes.

Powerful Full Temperature Range Analysis

The powerful full temperature range analysis of the TC01A-25HZ allows the user to never miss any details with both real-time high and low temperature capturing. The adjustable emissivity cam be applied with different materials and the comprehensive temperature analysis for spot, line, and area is supported with the professional thermal imaging app. For a timely response to abnormal conditions, a real-time temperature alarm will sound. For unattended operation, the user can activate the automatic time-lapse capture mode. Infrared and visible image comparison is available for locating, comparing, and archiving purposes.

Real-Time Image Sharing for Fast and Easy Communication

The TC01A-25HZ offers easy image and video management through real-time communication. Users are able to add annotations to their images for smooth communication between multiple users needing to review the content.

Small and Portable, Takes Only A Second to Get Started

Weighing less than a pound, the TC01A-25HZ offers a compact design for easy portability around jobsites. The instrument is constructed out of high-quality specially treated aluminum material with a laser-etched surface. For added durability, the unit can withstand a one meter drop and offers IP54 rated ingress protection against dust and water. The optimized Fluke iSee application interfaces and menus enhance the user experience with easy-to-access functions.
