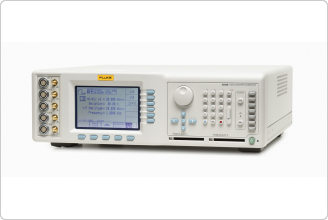

Fluke Calibration 9500B Oscilloscope Calibrator
The world's highest performance, fully automated, upgradeable oscilloscope calibration workstation
Oscilloscope calibration can be complex, time consuming and expensive. A significant amount of skilled operator interaction and interpretation is often required to complete the job, and today’s multi-channel instruments frequently mean that a great deal of lead switching is required. Even automated systems require significant manual intervention to complete elements of the most simple calibration procedures. Worse still, switching systems or multiplexers used to enable a degree of automation often contribute more errors and aberrations than the instrument being calibrated.
To compound the problem, rapid developments in oscilloscope technology make it difficult to keep up with performance trends without substantial re-investment on a regular basis. The 9500B Oscilloscope Calibration Workstation breaks that paradigm. It means that the benefits of hands-free, fully-automated, accurate oscilloscope calibration are readily available to everyone at a price and performance level that your needs and budget can support, while ensuring that, through performance upgrades, future needs will be met when the time demands it.
9560 Active Head – for ultimate leveled sine performance to 6.0 GHz
The introduction of the latest member of the Active Head family, 9560, once again underlines our commitment to oscilloscope calibration. With our continued focus on securing your investment, the 9560 Active Head is the latest product to fulfill this promise, allowing current users of the 9500 to upgrade their equipment to any 9500B status and take advantage of more recent product and performance enhancements. The 9560 is able to deliver 6.0 GHz leveled sine wave and pulse edges of only 70 ps.
Unlike other oscilloscope calibrators, you’re not restricted to fixed amplitude pulses. Active Head Technology™ lets you adjust output amplitude between 4.44 mV and 3.1V, allowing you to check an oscilloscope’s amplifiers right down to their most sensitive ranges. Whatever amplitude you choose, controlled waveshape filtering ensures that all high-speed edges have an accurately defined energy distribution.
-
Full automation provides totally hands-free oscilloscope calibration - even on today’s ultra-high performance, multi-channel, feature rich instruments.
-
Continuous upgradeability helps you protect your investment in the tools you need to manage ever changing workload demands.
-
Simultaneous output on 5 channels means no more lead changing and no more complicated signal multiplexers or impedance matching networks.
-
Leveled sinewaves to 6.0 GHz and edges to 70 ps provide all the performance and flexibility you need to fully calibrate today’s and tomorrow’s high performance oscilloscopes.
-
Fluke Calibration’s unique Active Head Technology™ generates calibration signals right at the oscilloscope input – now there is no doubt whether waveform aberrations are down to connecting leads or the oscilloscope itself.
| DC Voltage |
| Amplitude |
| |
± 1 mV to ± 200V into 1M Ω |
| |
± 1 mV to ± 5V into 50 Ω |
|
| Accuracy |
|
| Ranging |
| |
1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous |
|
| Deviation |
|
| Squarewave |
| Amplitude |
| Range: |
40 µV to 200V pk-pk into 1MΩ |
| |
40 µV to 5V pk-pk into 50Ω |
| Polarity: |
Positive, negative or symmetrical about ground |
| Accuracy (10 Hz to 10 kHz): |
<1 mV ± (1% + 10 µV) |
| |
1 mV-21 mV ± (0.10% + 10 µV) |
| Ranging: |
1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous |
| Deviation: |
± 11.2% |
|
| Rise/Fall Time |
| |
<100V <150 ns |
| |
>=100V <200 ns |
|
| Aberrations |
| |
<2% peak for first 500 ns |
|
| Frequency |
| Range: |
10 Hz to 100 kHz |
| Accuracy: |
± 0.25 ppm |
| Ranging: |
1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous |
|
| Low-Edge Pulse |
| Amplitude |
| Range: |
5 mV to 3V pk-pk into 50Ω |
| Accuracy: |
+50 ps to -150 ps |
| Ranging: |
1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous |
|
| Rise/Fall Time |
|
| Mk/Sp Ratio |
|
| Aberrations (into VSWR 1.2:1) |
| |
<± pk in 8Ghz |
| |
<± 1.5% pk in 3Ghz |
| |
(First 10ns) |
|
| Frequency |
| Range: |
10 Hz to 2 Mhz |
| Accuracy: |
± 0.25 ppm |
| Ranging: |
1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous |
|
| High-Edge Pulse |
| Amplitude |
| Range: |
1mV to 200V pk-pk into 1 MΩ |
| |
1mV to 5V pk-pk into 50Ω |
| Accuracy: |
± 3% |
| Ranging: |
1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous |
|
| Rise/Fall Time |
| |
<100V <150 ns |
| |
>=100V <200 ns |
|
| Mk/Sp Ratio |
|
| Aberrations |
|
| Frequency |
| Range: |
10 Hz to 100 kHz |
| Accuracy: |
± 0.25 ppm |
| Ranging: |
1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous |
|
| Fast-Edge (only available on 9530 Active Heads) |
| Amplitude |
| Range: |
5 mV to 3V pk-pk into 50Ω |
| Accuracy: |
± 3% |
| Ranging: |
1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous |
|
| Rise/Fall Time |
|
| Mk/Sp Ratio |
|
| Aberrations |
| |
<3% peak in 8 Ghz |
| |
<2% peak in 3 Ghz |
| |
(First Ins) |
|
| Frequency |
| Range: |
10 Hz to 2 Mhz |
| Accuracy: |
± 0.25 ppm |
| Ranging: |
1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous |
|
| 70ps Fast-Edge (only available on 9560 Active Heads) |
| Amplitude |
| Range: |
25 mV to 2V pk-pk |
| Accuracy: |
± 3% |
| Ranging: |
1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous |
|
| Rise/Fall Time |
|
| Mk/Sp Ratio |
|
| Aberrations |
| |
<± 4% peak in 20 Ghz |
| |
<3% peak in 8 Ghz |
| |
<1% peak in 3 Ghz |
| |
(First 700 ps) |
|
| Frequency |
| Range: |
10 Hz to 1 Mhz |
| Accuracy: |
± 0.25 ppm |
| Ranging: |
1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous |
|
| 25ps Fast-Edge (only available on 9550 Active Heads) |
| Amplitude |
| Range: |
425 to 575 mV pk-pk into 50Ω |
| Accuracy: |
± 2% |
|
| Rise/Fall Time |
|
| Mk/Sp Ratio |
|
| Timing Markers |
| Styles |
| |
Square/Sine, Pulse or Narrow Triangle |
|
| Square/Sine |
| Period Square: |
10 ns to 55s |
| Period Sine: |
450 ps to 10ns |
| |
9500/600 = 1ns to 10ns |
| |
9560 = 180ps to 10ns |
|
| Pulse |
| Period: |
1 µs to 55s |
| Rise/Fall Time: |
2.5% of period |
|
| Narrow Triangle |
|
| Ranging |
| |
1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous for period of all waveshapes |
|
| Timing Accuracy |
|
| Timing Jitter |
|
| Deviation |
|
| Amplitude |
|
| Sub-Division |
| |
Every 10th marker can be set to higher amplitude for periods ± 1 µs for all waveshapes |
|
| Leveled Sine and Dual Sine |
| Frequency |
| Range: |
9500B/600 0.1 Hz to 600 MHz |
| |
9500B/1100 0.1 Hz to 1.1 GHz |
| |
9500B/3200 0.1 Hz to 3.2 GHz |
| |
9500B/2200+9560 0.1Hz to 6.4 GHz |
|
| Amplitude (Leveled Sine into 50Ù) |
| 0.1 Hz - 550 MHz |
4.44 mV to 5.560V pk-pk |
| 550 MHz - 2.5 GHz |
4.44 mV to 3.336V pk-pk |
| 2.5 GHz - 3.2 GHz |
4.44 mV to 2.224V pk-pk |
| 3.2 GHz - 6.4 GHz |
25mV to 2 V pk-pk |
| Accuracy: |
± 1.5% at 50 kHz |
|
| Flatness (Leveled Sine relative to 50kHz) |
| 0.1 Hz - 300 MHz |
± 2% |
| 300 MHz - 550 MHz |
± 3% |
| 550 MHz - 1.1 GHz |
± 4% |
| 1.1 GHz - 3.2 GHz |
± 5% |
| 3 GHz - 6.0 GHz |
± 5% |
|
| Ranging |
| |
1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous |
|
| Sine Purity |
| 2nd Harmonic |
<-35 dBc |
| 3rd Harmonic |
<-40 dBc |
| All Other Spurious Signals |
<-40 dBc (typical) |
|
| Input Impedance |
| Resistance Measurement (not available on 9550) |
| Range: |
10Ω - 150Ω and 50 kΩ - 12 MΩ |
| Accuracy: |
10 - 40 (W) ± 0.5% |
| |
40 - 90 ± 0.1% |
| |
90 - 150 ± 0.5% |
| |
50k - 800k ± 0.5% |
| |
800k - 1.2M ± 0.1% |
| |
1.2M - 12M ± 0.5% |
|
| Capacitance Measurement (not available on 9550 or 9560 heads) |
| Range: |
1 pF to 95 pF |
| Accuracy: |
1 pF - 35 pF 2% ± 0.25 pF |
| |
35 pF - 95 pF 3% ± 0.25 pF |
|
| Current |
| Amplitude |
| DC: |
± 100 µA to ± 100 mA |
| Squarewave: |
100 µA to 100 mA pk-pk |
|
| Accuracy |
|
| Frequency |
| |
10 Hz to 100 kHz |
| Accuracy: |
± 0.25 ppm |
| Ranging: |
1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous |
|
| Composite Video Output |
| Amplitude |
|
| Pattern |
|
| Sync Polarity |
|
| Standards |
| |
625-line 50 Hz or 525-line 60 Hz |
|
| LFLinear Ramp |
| Waveforms |
|
| Ramp Time |
|
| Overload Pulse |
| Amplitude |
|
| Polarity |
|
| Duration |
|
| Trigger |
|
| Zero Skew |
| Unadjusted Skew |
|
| Adjusted Skew |
|
| Frequency Range |
|
| Short/Open Output |
| Output Leakage |
| Open Circuit: |
± 50 pA |
| Short Circuit: |
± 15 µV |
|
| Auxiliary Input |
| Signal Routing |
| |
Rear i/p to any Active Head |
|
| Maximum Input |
| Voltage: |
± 40V pk-pk |
| Current: |
± 400 mA pk-pk |
|
| Rate |
| User Selectable: |
f (up to 120 MHz), f/10 or f/100 |
| Free Run: |
100 Hz |
|
| Reference Frequency Input |
| Frequency Range: |
1 MHz to 20 MHz in 1 MHz steps |
| Level: |
90 mV to 1V pk-pk typ. |
| Lock Range: |
± 50 ppm |
|
| Reference Frequency Output |
| Frequency: |
1 MHz or 10 MHz |
| Level: |
Into 50W: 1V pk-pk (typical) |
|
| General Specifications |
| Temperature |
| Operating: |
5°C to 40°C |
| Storage: |
0°C to 50°C |
|
| Humidity (non-condensing) |
| Operating: |
<90% over 5°C to 30°C |
| |
<75% over 30°C to 40°C |
| Storage: |
<95% over 0°C to 50°C |
|
| Power, battery life |
| Voltage: |
95V to 132V rms or 209V to 264V rms |
| Frequency: |
48 Hz to 63 Hz |
| Consumption: |
400 VA |
|
| Warm up Time |
|
| Calibration Documentation |
17025 accredited report of calibration included |
| Dimensions |
| Model 9500B Mainframe: |
|
| H x W x D |
133 x 427 x 440 mm |
| |
(5.24 x 16.8 x 17.3 ins) |
| Weight: |
12 kg (27 lbs) approx. |
| Modules 9510, 9530, 9550: |
|
| H x W x D |
65 x 31 x 140 mm |
| |
(2.56 x 1.22 x 5.51 ins) |
| Weight: |
0.45 kg (1-lb) approx. |
|
| Safety |
| |
Designed to UL3111 and EN61010-1-1:1993/A2:1995. |
| |
CE Marked |
| |
EMC (including options) |
| Emissions: |
EN55011/22 |
| Immunity: |
EN50082-1:1992 |
| |
FCC Rules part 15 sub-part J class B |
|
| Warranty Period |
| Mainframe: |
1-year |
| Active Heads: |
3-years |
|
