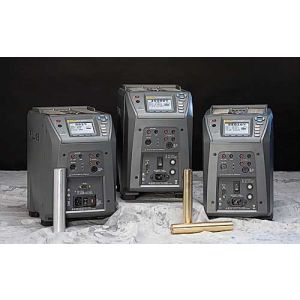

Fluke Calibration 9144-C-P-156

Product Highlights

• Field Metrology Well, 50 °C to 660 °C, w/9144-INSX, w/Process Electronics
• Temperature Range at 23 °C : 50 °C to 660 °C (122 °F to 1220 °F)
• Display Accuracy: ± 0.35 °C at 50 °C ± 0.35 °C at 420 °C ± 0.5 °C at 660 °C
• Stability: ± 0.03 °C at 50 °C ± 0.05 °C at 420 °C ± 0.05 °C at 660 °C
• Axial Uniformity at 40 mm (1.6 in): ± 0.05 °C at 50 °C ± 0.35 °C at 420 °C ± 0.5 °C at 660 °C
• Radial Uniformity: ± 0.02 °C at 50 °C ± 0.05 °C at 420 °C ± 0.10 °C at 660 °C
• Loading Effect (with a 6.35 mm reference probe and three 6.35 mm probes): ± 0.015 °C at 50 °C ± 0.025 °C at 420 °C
• ± 0.035 °C at 660 °C
• Hysteresis: 0.1°C
• Operating Conditions: 0 °C to 50 °C, 0 % to 90 % RH (non-condensing)
• Environmental Conditions (for all specifications except temperature range): 13 °C to 33 °C
• Immersion (Well) Depth: 150 mm (5.9 in)
• Insert OD: 24.4 mm (0.96in)
• Heating Time: 15 min: 50 °C to 660 °C
• Cooling Time: 35 min: 660 °C to 50 °C 25 min: 660 °C to 100 °C
• Resolution: 0.01 °
• Display: LCD, °C or °F user-selectable
• Size (H x W x D): 290 mm x 185 mm x 295 mm (11.4 x 7.3 x 11.6 in)
• Weight: 17 lbs (7.7kg)
• The process version provides a built-in two-channel thermometer readout that measures PRTs, RTDs, thermocouples, and 4-20 mA transmitters which includes the 24 V loop supply to power the transmitter.

Each Unit Includes

• Insert C
• RS-232 and 9930 Interface-it control software
• Test Leads
