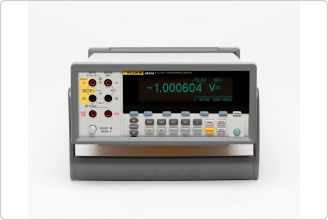

Fluke Calibration 8845A/8846A 6.5 Digit Precision Multimeters
Fluke Calibration 8845A/8846A 6.5 Digit Precision Multimeters
| Technical Specifications |
| Display |
VFD Dot Matrix |
| Resolution |
6.5 Digits |
| V DC |
| Ranges: |
100 mV to 1000 V |
| Max. Resolution: |
100 nV |
| Accuracy: |
8845A: 0.0035 + 0.0005 (% measurement + % of range) |
| |
8846A: 0.0024 + 0.0005 (% measurement + % of range) |
|
| V AC |
| Ranges: |
8845A: 100 mV to 750 V |
| |
8846A: 100 mV to 1000 V |
| Max. Resolution: |
100 nV |
| Accuracy: |
8845A: 0.06 + 0.03 (% measurement + % of range) |
| |
8846A: 0.06 + 0.03 (% measurement + % of range) |
| Frequency: |
3 Hz to 300 KHz |
|
| Resistance |
| 2x4 Wire: |
Yes |
| Ranges: |
8845A: 100 Ω to 100 MΩ |
| |
8846A: 10 Ω to 1 GΩ |
| Max. Resolution: |
8845A: 100 μΩ |
| |
8846A: 10 μΩ |
| Accuracy: |
8845A: 0.010 + 0.001 (% measurement + % of range) |
| |
8846A: 0.010 + 0.001 (% measurement + % of range) |
|
| A DC |
| Ranges: |
100 μA to 10 A |
| Max. Resolution: |
100 pA |
| Accuracy: |
0.050 + 0.005 (% measurement + % of range) |
|
| A AC |
| Ranges: |
8845A: 10 mA to 10 A |
| |
8846A: 100 mA to 10 A |
| Max. Resolution: |
8845A: 10 nA |
| |
8846A: 100 pA |
| Accuracy: |
0.10 + 0.04 (% measurement + % of range) |
| Frequency: |
3 Hz to 10 kHz |
|
| Freq/Period |
| Ranges: |
8845A: 3 Hz to 300 kHz |
| |
8846A: 3 Hz to 1 MHz |
| Max. Resolution: |
1 μHz |
| Accuracy: |
0.01 % |
|
| Continuity/ Diode Test |
Yes |
| Capacitance |
| Ranges: |
8846A: 1 nF to 0.1 F |
| Max. Resolution: |
8846A: 1 pf |
| Accuracy: |
8846A: 1 % |
|
| Temperature |
| Type: |
8846A: Platinum RTD |
| Ranges: |
8846A: -200 °C to +600 ° |
| Max. Resolution: |
8846A: 0.01 ° |
| Accuracy: |
8846A: 0.06 ° |
|
| Math Functions |
| |
NULL, Min/Max/Average, Std Dev |
| dB/dBm: |
Yes |
|
| Advanced Functions |
| Statistics/Histogram: |
Yes |
| Trendplot: |
Yes |
| Limit Test: |
Yes |
|
| Input Output |
| USB Memory: |
8846A: USB memory drive port |
| Real Time Clock: |
8846A: Yes |
| Interfaces: |
RS 232, IEE-488.2, Ethernet, USB (with optional adaptor) |
| Programming Languages/Modes: |
8846A: SCPI (IEEE-488.2), Agilent 34401A, Fluke 45 |
|
| General Specifications |
| Weight |
3.6 kg (8.0 lbs) |
| Dimensions |
88 mm x 217 mm x 297 mm (3.46 in x 8.56 in x 11.7 in) |
| Calibration Documentation |
17025 accredited report of calibration included |
| Safety |
Designed to comply with IEC 61010-1:2000-1, UL 61010-1A1, CAN/CSA-C22.2 No. 61010.1, CAT I 1000V/CAT II 600V |
| Warranty |
Three years |
Looking for higher or lower specs? See our other benchtop multimeters:
| Bench Multimeter Selection Guide |
| Model |
Resolution |
Accuracy |
Application |
| 8588A |
8.5 |
2.7 µV/V 95% confidence level, 1 year relative accuracy |
Metrology |
| 8558A |
8.5 |
4.0 µV/V 95% confidence level, 1 year relative accuracy |
High-Speed Automation |
| 8845A/8846A |
6.5 |
Basic V dc accuracy of up to 0.0024 % |
Bench |
| 8808A |
5.5 |
Basic V dc accuracy of 0.015 % |
Bench |
