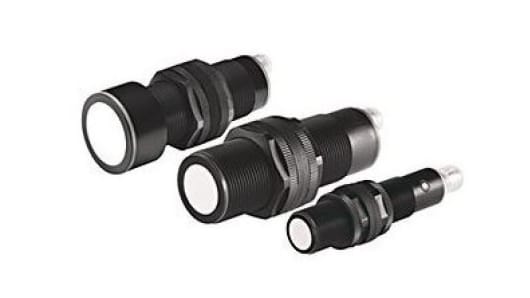

Allen Bradley Ultrasonic Barrel-Style Proximity Sensor, PNP, Analogue Output, 200 ? 2500 mm Detection, IP67,
DescriptionThe Allen Bradley ultrasonic sensors are ideal for applications that can be challenging for other sensing technologies, such as in the detection of clear, shiny or non-reflective objects. These sensors offer a wider range of operating voltages and simplified push-button setup.Rated sensing distance 200 to 2500 mmBlind zone 0 to...
Description
The Allen Bradley ultrasonic sensors are ideal for applications that can be challenging for other sensing technologies, such as in the detection of clear, shiny or non-reflective objects. These sensors offer a wider range of operating voltages and simplified push-button setup.
Rated sensing distance 200 to 2500 mm
Blind zone 0 to 200 mm
Linearity <3 %
Resolution (SIO) 2 mm
Accuracy 1 %
Hysteresis < 3 %
Blind zone 0 to 200 mm
Linearity <3 %
Resolution (SIO) 2 mm
Accuracy 1 %
Hysteresis < 3 %
Specifications
| Attribute | Value |
| Sensor Technology | Ultrasonic |
| Thread Size | M30 |
| Body Style | Barrel |
| Output Type | PNP, Analogue |
| Detection Range | 200 ? 2500 mm |
| Terminal Type | M12 Connector |
| Supply Voltage | 12 ? 30 V |
| IP Rating | IP67 |
| Length | 98.9mm |
