Allen Bradley 856T Series Green Rotating Effect Beacon Tower, 24 V ac/dc, LED Bulb, IP66, IP67, Black Housing
Allen Bradley 856T Series Green Rotating Effect Beacon Tower, 24 V ac/dc, LED Bulb, IP66, IP67, Black HousingDescriptionAllen Bradley Beacon Tower, Rotating LED, Green Lens - 856T-BR3Do you need to draw attention to the status of machines in your workplace? Generate an eye-catching visual signal with this beacon tower from...
Allen Bradley 856T Series Green Rotating Effect Beacon Tower, 24 V ac/dc, LED Bulb, IP66, IP67, Black Housing
Description

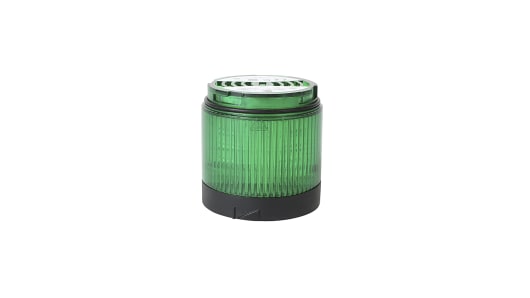

Allen Bradley Beacon Tower, Rotating LED, Green Lens - 856T-BR3
Do you need to draw attention to the status of machines in your workplace? Generate an eye-catching visual signal with this beacon tower from Rockwell Automation's Allen Bradley range. It works by illuminating an LED bulb inside a green lens when it receives a 24V AC/DC input voltage. With a 6300mcd light output, this unit is easy to spot, even on busy factory floors, ensuring that all personnel are aware of the situation. Green beacons like this usually indicate that normal operation is underway and conditions are safe.
• Polycarbonate base for durability
• Rotating light effect to draw attention fast
• Operating life of over 60,000 hours for long service
• IP67 rating means that it's protected from dust and waterproof up to 1m for half an hour
• Compatible with base mounting adapters, allowing you to raise the beacon and make it more prominent
• Rotating light effect to draw attention fast
• Operating life of over 60,000 hours for long service
• IP67 rating means that it's protected from dust and waterproof up to 1m for half an hour
• Compatible with base mounting adapters, allowing you to raise the beacon and make it more prominent
Standards and Certifications
• UL 60947-5-1
• c-UL-us
• CSA C22.2 No. 14
• RCM (EN 61000-6-3:2007 + A1:2011)
• c-UL-us
• CSA C22.2 No. 14
• RCM (EN 61000-6-3:2007 + A1:2011)
856T 70 mm Light Modules, Black Housing colour, Rotating LED, Green Output colour, Standard Lens Finish
What's the operating temperature range of this device?
This beacon tower has a wide operating temperature range between -30°C and +70°C, so it will function even in demanding environments.
Specifications
| Attribute | Value |
| Series | 856T |
| Component Type | Beacon |
| Current Type | AC, DC |
| Light Effect | Rotating |
| Lens Colour | Green |
| Lamp Included | Yes |
| Bulb Type | LED |
| Supply Voltage | 24 V ac/dc |
| IP Rating | IP66, IP67 |
| Base Diameter | 70mm |
| Maximum Temperature | +70°C |
| Housing Colour | Black |
| Minimum Temperature | -30°C |
