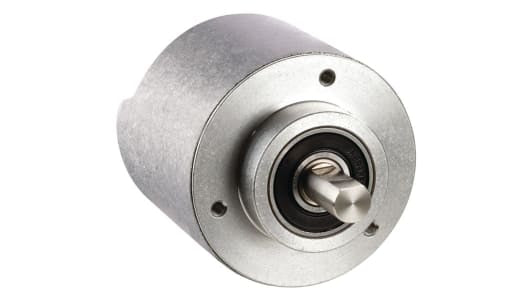

    Allen Bradley Absolute Encoder 262144 ppr Ethernet, Solid Shaft, 842E-SIP3BA

    Description

    842E EtherNet/IP Absolute Encoders


    Allen Bradley 842E series ultra-high resolution EtherNet/IP absolute encoders provide dual-port Ethernet and M12 connectors. The 842E series encoders are designed for high performance and reliability in harsh industrial environments. Encoders include an embedded EtherNet/IP switch to connect additional Ethernet/IP capable products in series and/or support a Device Level Ring (DLR) for Ethernet media redundancy.

    Available in single-turn 18-bit resolution and multi-turn 30-bit resolution, these high-resolution absolute encoders are ideal for automotive, material handling and general factory automation applications.

    Features and Benefits


    EtherNet/IP interface

    Simple and fast set up

    Single-turn 18-bit resolution or multi-turn 30-bit resolution

    Embedded switch

    Device Level Ring (DLR)

    Revolution divisor

    Solid and blind hollow shaft options

    M12 Connectors

    Status indication LEDs

    Hardware/software IP address setting

    IP67 Rated

    Allen Bradley Absolute Encoder, 10 to 30V DC Supply Voltage, 10mm Shaft Diameter - 842E-SIP3BA


    Use this absolute encoder from Rockwell Automation's Allen Bradley range to detect speeds in your industrial equipment. It has dual Ethernet ports to create a link between your system and the internet, which allows for efficient data transfer. To achieve accurate measurements, the unit features absolute encoder technology to ensure the shaft position is maintained whether the device is powered or not. You can depend on it for use in low-voltage applications as it has a supply voltage range of 10V to 30V. Thanks to a current rating of less than 200mA, this is an energy-efficient option.

    Features & Benefits


    • LED indicators for status indication and simple troubleshooting
    • Flange mounting type for convenient installation
    • Dimensions of 84 (D) x 60mm (W) for installation in compact setups
    • Maximum revolutions of 9000rpm for use in high-speed applications
    • Ultra-high 18-bit resolution for reliable performance

    Standards and Certifications


    • EN 60068-2-27
    • CE
    • IEC 60529
    • EN 61000-6-3

    Can I install this device in extreme environments?


    Yes, this device has a broad operating temperature range between -30°C and +85°C so you can rely on it in challenging industrial settings.


    Allen Bradley Rotary Encoders

    Specifications

    Attribute Value
    Encoder Technology Absolute
    Pulses Per Revolution 262144ppr
    Maximum Revolutions 9000rpm
    Output Signal Type Analogue, Binary
    Shaft Type Solid
    Shaft Diameter 10mm
    Supply Voltage 10 ? 30 V
    Resolution 18 Bit
    Steps Per Revolution 262144Steps
    IP Rating IP65, IP67
    Interface Ethernet
    Overall Width 60mm
    Overall Depth 84mm
    Minimum Operating Temperature -30°C
    Maximum Operating Temperature +85°C
    Mounting Type Clamping Flange
    Series 842E
    Current Rating ?200 mA
