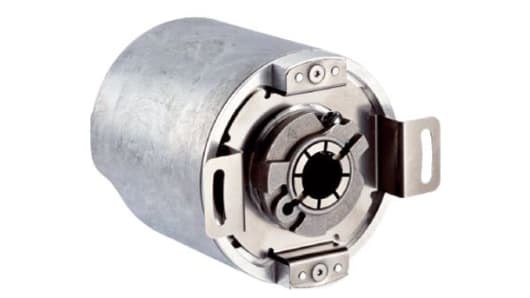

Allen Bradley Absolute Encoder 262144 ppr Ethernet, Hollow Shaft, 842E-MIP8BA

  • ₦0.00
  • Allen Bradley Absolute Encoder 262144 ppr Ethernet, Hollow Shaft, 842E-MIP8BADescription842E EtherNet/IP Absolute Encoders Allen Bradley 842E series ultra-high resolution EtherNet/IP absolute encoders provide dual-port Ethernet and M12 connectors. The 842E series encoders are designed for high performance and reliability in harsh industrial environments. Encoders include an embedded EtherNet/IP switch to...



    Add to quote

    Allen Bradley Absolute Encoder 262144 ppr Ethernet, Hollow Shaft, 842E-MIP8BA

    Description

    842E EtherNet/IP Absolute Encoders


    Allen Bradley 842E series ultra-high resolution EtherNet/IP absolute encoders provide dual-port Ethernet and M12 connectors. The 842E series encoders are designed for high performance and reliability in harsh industrial environments. Encoders include an embedded EtherNet/IP switch to connect additional Ethernet/IP capable products in series and/or support a Device Level Ring (DLR) for Ethernet media redundancy.

    Available in single-turn 18-bit resolution and multi-turn 30-bit resolution, these high-resolution absolute encoders are ideal for automotive, material handling and general factory automation applications.

    Features and Benefits


    EtherNet/IP interface

    Simple and fast set up

    Single-turn 18-bit resolution or multi-turn 30-bit resolution

    Embedded switch

    Device Level Ring (DLR)

    Revolution divisor

    Solid and blind hollow shaft options

    M12 Connectors

    Status indication LEDs

    Hardware/software IP address setting

    IP67 Rated

    Allen Bradley Absolute Encoder, ?200mA Current Rating, 10mm Shaft Diameter - 842E-MIP8BA


    Use this absolute encoder from Rockwell Automation's Allen Bradley range for precise monitoring and velocity control of your industrial servo motors. It monitors the motors' shaft or axle rotation and sends the information back as digital signals. The unit is made of robust aluminium material with high mechanical strength and corrosion resistance, so it won't rust when used in harsh environments. You'll find it useful in process and production facilities, as well as in robotics and automation processes that need precise positioning and speed.

    • Integrated Ethernet/IP (internet protocol) switch to allow for monitoring over the internet
    • Ingress protection rating of IP67 to withstand dust and immersion in up to 1m of water
    • Wide operating temperature range from -30°C to +85°C for use in demanding conditions
    • Can deliver both analogue and digital signal output for versatility

    Standards and Certifications


    • RoHS (Restriction of Hazardous Substances)
    • EN (European Standard)

    What's the power rating of this encoder?


    The power rating of this encoder is 3W. This makes it an energy-efficient monitoring solution.


    Allen Bradley Rotary Encoders

    Specifications

    Attribute Value
    Encoder Technology Absolute
    Pulses Per Revolution 262144
    Maximum Revolutions 6000rpm
    Output Signal Type Analogue, Binary
    Shaft Type Hollow
    Supply Voltage 10 ? 30 V dc
    Shaft Diameter 10mm
    Resolution 18 Bit
    Steps Per Revolution 262144Steps
    IP Rating IP65, IP67
    Interface Ethernet
    Overall Width 63mm
    Overall Depth 71.5mm
    Minimum Operating Temperature -30°C
    Maximum Operating Temperature +85°C
    Mounting Type Hollow Shaft Flange
    Current Rating =200 mA
    Series 842E
