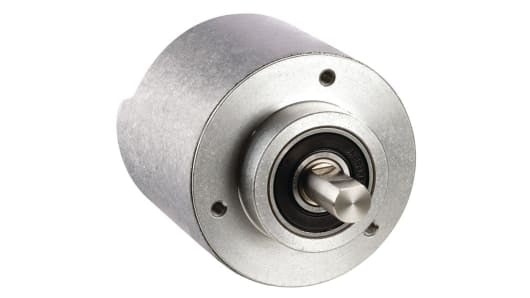

Allen Bradley Absolute Encoder 262144 ppr Ethernet, Solid Shaft, 842E-MIP1BA
Allen Bradley Absolute Encoder 262144 ppr Ethernet, Solid Shaft, 842E-MIP1BADescription842E EtherNet/IP Absolute Encoders Allen Bradley 842E series ultra-high resolution EtherNet/IP absolute encoders provide dual-port Ethernet and M12 connectors. The 842E series encoders are designed for high performance and reliability in harsh industrial environments. Encoders include an embedded EtherNet/IP switch to...
Allen Bradley Absolute Encoder 262144 ppr Ethernet, Solid Shaft, 842E-MIP1BA
Description
842E EtherNet/IP Absolute Encoders
Features and Benefits
Allen Bradley Absolute Encoder, 18 Bit Resolution, Solid Type - 842E-MIP1BA
Features & Benefits
• LED signals for easy status monitoring
• Wide operating temperature range between -30°C and +85°C indicates it functions in demanding conditions
• Housing has IP67 rating, meaning it's dust-tight and waterproof up to a depth of 1m
Standards and Certifications
• EN 61000-6-3
• CE Marked for all applicable directives
Can I use this unit in humid environments?
Specifications
Attribute | Value |
Encoder Technology | Absolute |
Pulses Per Revolution | 262144ppr |
Maximum Revolutions | 9000rpm |
Output Signal Type | Analogue, Binary |
Shaft Type | Solid |
Supply Voltage | 10 ? 30 V |
Shaft Diameter | 3/8in |
Resolution | 18 Bit |
Steps Per Revolution | 262144Steps |
IP Rating | IP65, IP67 |
Interface | Ethernet |
Overall Width | 60mm |
Overall Depth | 84mm |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | +85°C |
Mounting Type | Clamping Flange |
Current Rating | ?200 mA |
Series | 842E |
