Allen Bradley 836P Series Pressure Sensor, 0bar Min, 25bar Max, 4 ? 20 mA, Analogue, PNP-NO/NC Output, Relative
Allen Bradley 836P Series Pressure Sensor, 0bar Min, 25bar Max, 4 ? 20 mA, Analogue, PNP-NO/NC Output, RelativeDescriptionAllen Bradley 836P Solid-State IO-Link Pressure Sensor Allen-Bradley 836P series solid-state pressure sensors are capable of measuring pressure of liquid or gases in a rugged, compact housing. The 836P sensors feature embedded IO-Link...
Allen Bradley 836P Series Pressure Sensor, 0bar Min, 25bar Max, 4 ? 20 mA, Analogue, PNP-NO/NC Output, Relative
Description

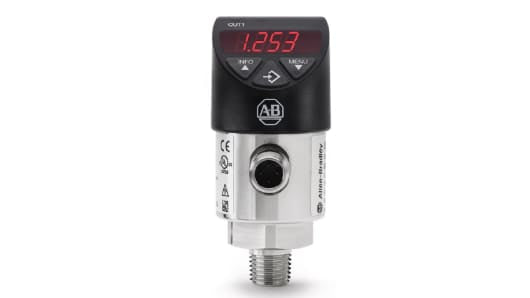

Allen Bradley 836P Solid-State IO-Link Pressure Sensor
Allen-Bradley 836P series solid-state pressure sensors are capable of measuring pressure of liquid or gases in a rugged, compact housing. The 836P sensors feature embedded IO-Link 1.1 communication protocol, which allows for easy integration while delivering data directly into a control system in an easy-to-use manner.
With a rotatable housing (320°) and head (330°), the flexible 836P display model accommodates the most space-critical applications. And for even greater adjustability, the large visual LED display can be rotated 180º. Additional features include pressure ranges from -1...551 bar (-14.5 psi to 8000 psi), tactile push buttons for easy setup, and an IP67 enclosure rating. 836P sensors have dual PNP or one PNP + one 4 mA to 20 mA output configurations in gauge, absolute or vacuum pressure measurement types with a large selection of process connections.
Features and Benefits
Corrosion resistant 316L stainless steel sensing element
Compact form factor
LED display
IP67 rated
Rotatable housing and head
Available in various process connections
IO-Link communication protocol
Allen Bradley Relative Pressure Sensor, 0 to 25 Bar Pressure Reading, 15 to 35V Supply Voltage - 836P-D2NMGB36PA-D4
Accurately measure and determine the pressures of liquids and gases with this relative pressure sensor from Rockwell Automation's Allen Bradley range. It's a solid-state electronic device with a high accuracy rate to make sure your applications perform at their best. The integrated IO-Link 1.1 communications protocol delivers data directly to your control systems so you can quickly detect and fix problems. Setup is done using the Studio 5000 Logix Designer software or you can manually configure the device for easy on-machine programming.
• Rotatable housing and head to ensure you have a clear view
• Visual display rotates 180° so you can quickly and easily determine pressure ranges
• Pressure range from 0 to 25 bar for versatility
• Wide operating temperatures from -20°C to +80°C for use in tough industrial environments
• Visual display rotates 180° so you can quickly and easily determine pressure ranges
• Pressure range from 0 to 25 bar for versatility
• Wide operating temperatures from -20°C to +80°C for use in tough industrial environments
Standards and Certifications
• RoHS (Restriction of Hazardous Substances)
What does the IP67 rating mean in terms of this device?
The IP67 (ingress protection) rating indicates that this device's enclosure is dust and watertight. That means airborne contaminants or liquids can't damage the internal semiconductors, wires or contacts and you can confidently use the unit in heavy-duty environments like factories and industrial kitchens.
Specifications
| Attribute | Value |
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 25bar |
| Accuracy | ±1 % |
| Output Type | 4 ? 20 mA, Analogue, PNP-NO/NC |
| Media Measured | Gas, Liquid, Steam |
| Process Connection | NPT 1/4 |
| Electrical Connection | 4-Pin M12 DC Micro Connector |
| Analogue Output | 4 ? 20 mA |
| Communication Protocol | IO-LINK |
| Series | 836P |
| Maximum Current | 450 mA |
| Supply Voltage | 15 ? 35 V dc |
| Interface | IO-Link |
| Housing Material | Stainless Steel |
| Minimum Operating Temperature | -20°C |
| IP Rating | IP65, IP67 |
| Maximum Operating Temperature | +80°C |
| Mounting Type | Vertical Mount |
