Allen Bradley 836P Series Pressure Sensor, 0bar Min, 13.78bar Max, 4 ? 20 mA, Analogue, PNP-NO/NC Output,
Description

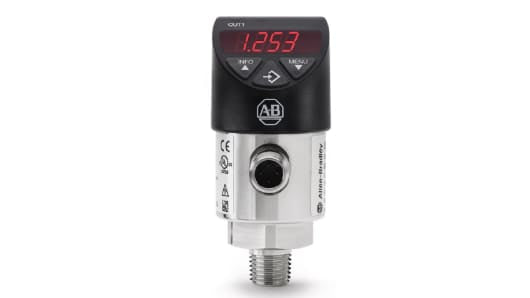

Allen Bradley 836P Solid-State IO-Link Pressure Sensor
Features and Benefits
Allen Bradley Pressure Sensor, LED Display, ±1% Accuracy - 836P-D2NMGB20PA-D4
Features & Benefits
• Resistant to shock and vibration to withstand demanding conditions
• IP67 rating indicates it's dustproof and protected against water immersion between 15cm and 1m
• Ambient operating temperature range between -20°C and +80°C to withstand harsh environments
• Tough stainless steel housing resists corrosion
Standards and Certifications
• CE conformity
• EMC directive
• EN 61326
• RoHs conformity
How long will this sensor last?
Specifications
Attribute | Value |
Pressure Reading Type | Relative |
Minimum Pressure Reading | 0bar |
Maximum Pressure Reading | 13.78bar |
Accuracy | ±1 % |
Output Type | 4 ? 20 mA, Analogue, PNP-NO/NC |
Media Measured | Gas, Liquid, Steam |
Process Connection | NPT 1/4 |
Electrical Connection | 4-Pin M12 DC Micro Connector |
Analogue Output | 4 ? 20 mA |
Communication Protocol | IO-LINK |
Series | 836P |
Maximum Current | 450 mA |
Supply Voltage | 15 ? 35 V dc |
Interface | IO-Link |
Housing Material | Stainless Steel |
Mounting Type | Vertical Mount |
IP Rating | IP65, IP67 |
Maximum Operating Temperature | +80°C |
Minimum Operating Temperature | -20°C |
