Allen Bradley 836P Series Pressure Sensor, 4 ? 20 mA, Analogue, PNP-NO/NC Output, Relative Reading
Description

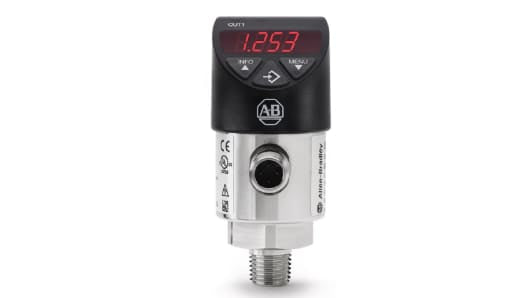

Allen Bradley 836P Solid-State IO-Link Pressure Sensor
Allen-Bradley 836P series solid-state pressure sensors are capable of measuring pressure of liquid or gases in a rugged, compact housing. The 836P sensors feature embedded IO-Link 1.1 communication protocol, which allows for easy integration while delivering data directly into a control system in an easy-to-use manner.
With a rotatable housing (320°) and head (330°), the flexible 836P display model accommodates the most space-critical applications. And for even greater adjustability, the large visual LED display can be rotated 180º. Additional features include pressure ranges from -1...551 bar (-14.5 psi to 8000 psi), tactile push buttons for easy setup, and an IP67 enclosure rating. 836P sensors have dual PNP or one PNP + one 4 mA to 20 mA output configurations in gauge, absolute or vacuum pressure measurement types with a large selection of process connections.
Features and Benefits
Corrosion resistant 316L stainless steel sensing element
Compact form factor
LED display
IP67 rated
Rotatable housing and head
Available in various process connections
IO-Link communication protocol
Allen Bradley Pressure Sensor, 0 to 1.38 Bar Operating Pressure Range, ±1% Accuracy - 836P-D2NMGA20PA-D4
This Allen Bradley pressure sensor from Rockwell Automation closely tracks changes in your industrial system's pressure. As a gauge type, it measures a fluid's pressure relative to the surrounding air to automatically account for atmospheric changes. The unit comes with an easy-to-read LED display that rotates through 180°, so you can be sure of clear visibility from all angles. An accuracy rating of ±1% means the device provides precise readings for reliable data. With support for both PNP and analogue output signals, this sensor is widely compatible with standard processing equipment.
Features & Benefits
• Corrosion-resistant stainless steel housing for long-lasting resistance to impacts in damp environments
• Integrated IO-Link communication for remote data collection from control devices
• IP67 rating indicates protection against dust and temporary submersion in shallow water
• Wide operating temperature range between -20°C and +80°C for use in hazardous conditions
• Fast cycle time of 3ms for efficient measurements
• Integrated IO-Link communication for remote data collection from control devices
• IP67 rating indicates protection against dust and temporary submersion in shallow water
• Wide operating temperature range between -20°C and +80°C for use in hazardous conditions
• Fast cycle time of 3ms for efficient measurements
Standards and Certifications
• IEC 61298-2
• cULus
• CE Marked
• cULus
• CE Marked
What media can I use this pressure sensor with?
The device is a versatile option that works with both liquid and gas media.
Specifications
| Attribute | Value |
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0psi |
| Maximum Pressure Reading | 20psi |
| Accuracy | ±1 % |
| Output Type | 4 ? 20 mA, Analogue, PNP-NO/NC |
| Media Measured | Gas, Liquid, Steam |
| Process Connection | NPT 1/4 |
| Electrical Connection | 4-Pin M12 DC Micro Connector |
| Analogue Output | 4 ? 20 mA |
| Communication Protocol | IO-LINK |
| Series | 836P |
| Maximum Current | 450 mA |
| Supply Voltage | 15 ? 35 V dc |
| Interface | IO-Link |
| Housing Material | Stainless Steel |
| Mounting Type | Vertical Mount |
| Maximum Operating Temperature | +80°C |
| IP Rating | IP65, IP67 |
| Minimum Operating Temperature | -20°C |
