Allen Bradley 836P Series Pressure Sensor, 0bar Min, 4.13bar Max, 4 ? 20 mA, Analogue, PNP-NO/NC Output,
Description

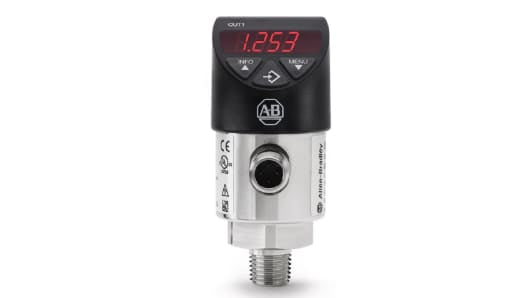

Allen Bradley 836P Solid-State IO-Link Pressure Sensor
Features and Benefits
Allen Bradley Pressure Sensor, IO-LINK Communication Protocol, 1/4in NPT Process Connection - 836P-D2NMAA60PA-D4
Features & Benefits
• Functions in a wide pressure range between 0 and 10 bar for versatility
• 330° rotatable head and 320° rotatable housing provide the flexibility needed to suit your setup
• Supply voltage range of 15 to 35V DC for low-power systems
Standards and Certifications
• RoHS
• cULus
• EN 61326
Does this device work in harsh conditions?
Specifications
Attribute | Value |
Pressure Reading Type | Absolute |
Minimum Pressure Reading | 0bar |
Maximum Pressure Reading | 4.13bar |
Accuracy | ±1 % |
Output Type | 4 ? 20 mA, Analogue, PNP-NO/NC |
Media Measured | Gas, Liquid, Steam |
Process Connection | NPT 1/4 |
Analogue Output | 4 ? 20 mA |
Electrical Connection | 4-Pin M12 DC Micro Connector |
Communication Protocol | IO-LINK |
Series | 836P |
Maximum Current | 450 mA |
Supply Voltage | 15 ? 35 V dc |
Interface | IO-Link |
Housing Material | Stainless Steel |
Mounting Type | Vertical Mount |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +80°C |
IP Rating | IP65, IP67 |
