Allen Bradley 836P Series Pressure Sensor, 0bar Min, 248bar Max, 4 ? 20 mA, Analogue, PNP-NO/NC Output, Relative
Description

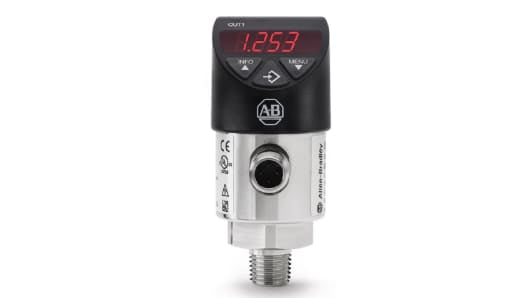

Allen Bradley 836P Solid-State IO-Link Pressure Sensor
Allen-Bradley 836P series solid-state pressure sensors are capable of measuring pressure of liquid or gases in a rugged, compact housing. The 836P sensors feature embedded IO-Link 1.1 communication protocol, which allows for easy integration while delivering data directly into a control system in an easy-to-use manner.
With a rotatable housing (320°) and head (330°), the flexible 836P display model accommodates the most space-critical applications. And for even greater adjustability, the large visual LED display can be rotated 180º. Additional features include pressure ranges from -1...551 bar (-14.5 psi to 8000 psi), tactile push buttons for easy setup, and an IP67 enclosure rating. 836P sensors have dual PNP or one PNP + one 4 mA to 20 mA output configurations in gauge, absolute or vacuum pressure measurement types with a large selection of process connections.
Features and Benefits
Corrosion resistant 316L stainless steel sensing element
Compact form factor
LED display
IP67 rated
Rotatable housing and head
Available in various process connections
IO-Link communication protocol
Allen Bradley Pressure Sensor, 15 to 35V DC Supply Voltage, 450mA Max Current Consumption - 836P-D2NFGC36PA-D4
Looking for a durable pressure detection solution? With its stainless steel housing, this pressure sensor from Rockwell Automation's Allen Bradley range is a practical choice. It features a piezoresistive cell that converts measurements from its metallic diaphragm to electrical signals that it displays on a digital screen. The unit can assess the pressure in both gas and liquid media, so you can count on its versatility if you work with different substances. Sensors like this one are suitable for use with CIP machines in the food and beverage production industry.
Features & Benefits
• IP67 rating indicates that it's dustproof and can withstand immersion in 1m of water for 30 minutes
• Wide pressure measurement range of 0 to 248 bar for use in both light-duty and heavy-duty applications
• Reverse polarity protection to prevent damage from misconnection
• IO-Link compatible for easy integration with other control devices
• Wide pressure measurement range of 0 to 248 bar for use in both light-duty and heavy-duty applications
• Reverse polarity protection to prevent damage from misconnection
• IO-Link compatible for easy integration with other control devices
Standards and Certifications
• EN 61326
• cULus Certified
• CE
• cULus Certified
• CE
What service life can I expect from this pressure sensor?
This sensor has a service life of 100 million switching cycles, so you can rely on it for long-term performance.
Specifications
| Attribute | Value |
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 248bar |
| Accuracy | ±1 % |
| Output Type | 4 ? 20 mA, Analogue, PNP-NO/NC |
| Media Measured | Gas, Liquid, Steam |
| Process Connection | NPT 1/4 |
| Electrical Connection | 4-Pin M12 DC Micro Connector |
| Analogue Output | 4 ? 20 mA |
| Communication Protocol | IO-LINK |
| Series | 836P |
| Maximum Current | 450 mA |
| Supply Voltage | 15 ? 35 V dc |
| Interface | IO-Link |
| Housing Material | Stainless Steel |
| Maximum Operating Temperature | +80°C |
| IP Rating | IP65, IP67 |
| Minimum Operating Temperature | -20°C |
| Mounting Type | Vertical Mount |
