Description

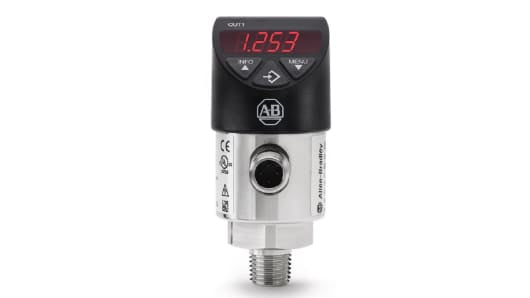

Allen Bradley 836P Solid-State IO-Link Pressure Sensor
Allen-Bradley 836P series solid-state pressure sensors are capable of measuring pressure of liquid or gases in a rugged, compact housing. The 836P sensors feature embedded IO-Link 1.1 communication protocol, which allows for easy integration while delivering data directly into a control system in an easy-to-use manner.
With a rotatable housing (320°) and head (330°), the flexible 836P display model accommodates the most space-critical applications. And for even greater adjustability, the large visual LED display can be rotated 180º. Additional features include pressure ranges from -1...551 bar (-14.5 psi to 8000 psi), tactile push buttons for easy setup, and an IP67 enclosure rating. 836P sensors have dual PNP or one PNP + one 4 mA to 20 mA output configurations in gauge, absolute or vacuum pressure measurement types with a large selection of process connections.
Features and Benefits
Corrosion resistant 316L stainless steel sensing element
Compact form factor
LED display
IP67 rated
Rotatable housing and head
Available in various process connections
IO-Link communication protocol
Allen Bradley Pressure Sensor, 0 to 68.95 Bar Operating Pressure Range, ±1% Accuracy - 836P-D2NFGC10PA-D4
Precisely monitor pressures throughout your industrial system with this pressure sensor from Rockwell Automation's Allen Bradley range. It quickly responds to changes in fluid pressure and, as the device's readings have an accuracy of ±1%, you can trust it gives you reliable data. A wide operating pressure range between 0 and 68.9 bar makes this a reliable option for use with high-pressure applications. Built-in IO-Link support lets you remotely access the sensor's readings from your control device, making data collection efficient and straightforward.
Features & Benefits
• Outputs both PNP and analogue signals for compatibility with common processing devices
• Large display rotates through 180° for clear visibility
• IP67 rating indicates protection against dust and temporary submersion in shallow water, for use in harsh industrial conditions
• Service life of 100 million cycles for longevity
• Large display rotates through 180° for clear visibility
• IP67 rating indicates protection against dust and temporary submersion in shallow water, for use in harsh industrial conditions
• Service life of 100 million cycles for longevity
Standards and Certifications
• CE
• IEC 60068-2
• cULus
• IEC 60068-2
• cULus
Is this pressure sensor protected against impacts?
Yes, this sensor's robust stainless steel housing resists damage caused by impacts. As its casing is corrosion-resistant, the unit's reliably protected against shocks in damp conditions.
Specifications
| Attribute | Value |
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0psi |
| Maximum Pressure Reading | 1000psi |
| Accuracy | ±1 % |
| Output Type | 4 ? 20 mA, Analogue, PNP-NO/NC |
| Media Measured | Gas, Liquid, Steam |
| Process Connection | NPT 1/4 |
| Electrical Connection | 4-Pin M12 DC Micro Connector |
| Analogue Output | 4 ? 20 mA |
| Communication Protocol | IO-LINK |
| Maximum Current | 450 mA |
| Series | 836P |
| Supply Voltage | 15 ? 35 V dc |
| Interface | IO-Link |
| Housing Material | Stainless Steel |
| Mounting Type | Vertical Mount |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +80°C |
| IP Rating | IP65, IP67 |
