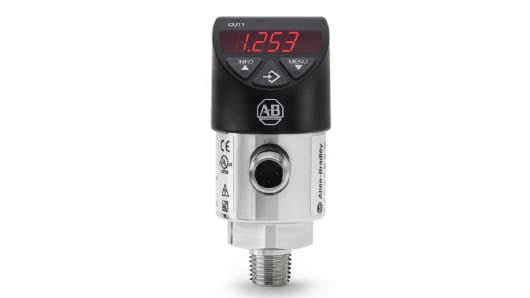

    Allen Bradley 836P Series Pressure Sensor, 4 ? 20 mA, Analogue, PNP-NO/NC Output, Relative Reading

    Description

    Allen Bradley 836P Solid-State IO-Link Pressure Sensor


    Allen-Bradley 836P series solid-state pressure sensors are capable of measuring pressure of liquid or gases in a rugged, compact housing. The 836P sensors feature embedded IO-Link 1.1 communication protocol, which allows for easy integration while delivering data directly into a control system in an easy-to-use manner.

    With a rotatable housing (320°) and head (330°), the flexible 836P display model accommodates the most space-critical applications. And for even greater adjustability, the large visual LED display can be rotated 180º. Additional features include pressure ranges from -1...551 bar (-14.5 psi to 8000 psi), tactile push buttons for easy setup, and an IP67 enclosure rating. 836P sensors have dual PNP or one PNP + one 4 mA to 20 mA output configurations in gauge, absolute or vacuum pressure measurement types with a large selection of process connections.

    Features and Benefits


    Corrosion resistant 316L stainless steel sensing element

    Compact form factor

    LED display

    IP67 rated

    Rotatable housing and head

    Available in various process connections

    IO-Link communication protocol

    Allen Bradley Pressure Sensor, Electronic Display, ±1% Accuracy - 836P-D2NFGA30PA-D4


    Looking to measure fluid pressure in your industrial processes? Use this pressure sensor from Rockwell Automation's Allen Bradley series. It uses a piezoelectric element to detect rapid changes in your system's pressure to an accuracy rating of ±1%, so it's a precise option. A short cycle rate of 3ms means you can depend on the unit to give you reliable data in real time. For easy reading of outputs, there's an LED display protected by a tough polycarbonate screen that can withstand the demands of industrial environments. As this pressure sensor's housing is made from stainless steel, you can be sure it's resistant to impacts and corrosion.

    Features & Benefits


    • Low maximum current consumption of 450mA for energy-efficient monitoring
    • Built-in IO-Link support provides remote access from logic controllers for convenient data collection
    • Lifespan of 100 million operations for long-term use
    • IP67 rating indicates resistance to dust and limited submersion in shallow water

    Standards and Certifications


    • UKCA-approved
    • EN 61010-1
    • IEC 60068-2

    What operating temperatures can I use this pressure sensor in?


    The device works in operating temperatures between -20°C and +80°C, so it's suited to harsh industrial conditions.

    Specifications

    Attribute Value
    Pressure Reading Type Relative
    Minimum Pressure Reading 0psi
    Maximum Pressure Reading 30psi
    Accuracy ±1 %
    Output Type 4 ? 20 mA, Analogue, PNP-NO/NC
    Media Measured Gas, Liquid, Steam
    Process Connection NPT 1/4
    Analogue Output 4 ? 20 mA
    Electrical Connection 4-Pin M12 DC Micro Connector
    Communication Protocol IO-LINK
    Maximum Current 450 mA
    Series 836P
    Supply Voltage 15 ? 35 V dc
    Interface IO-Link
    Housing Material Stainless Steel
    IP Rating IP65, IP67
    Mounting Type Vertical Mount
    Minimum Operating Temperature -20°C
    Maximum Operating Temperature +80°C
